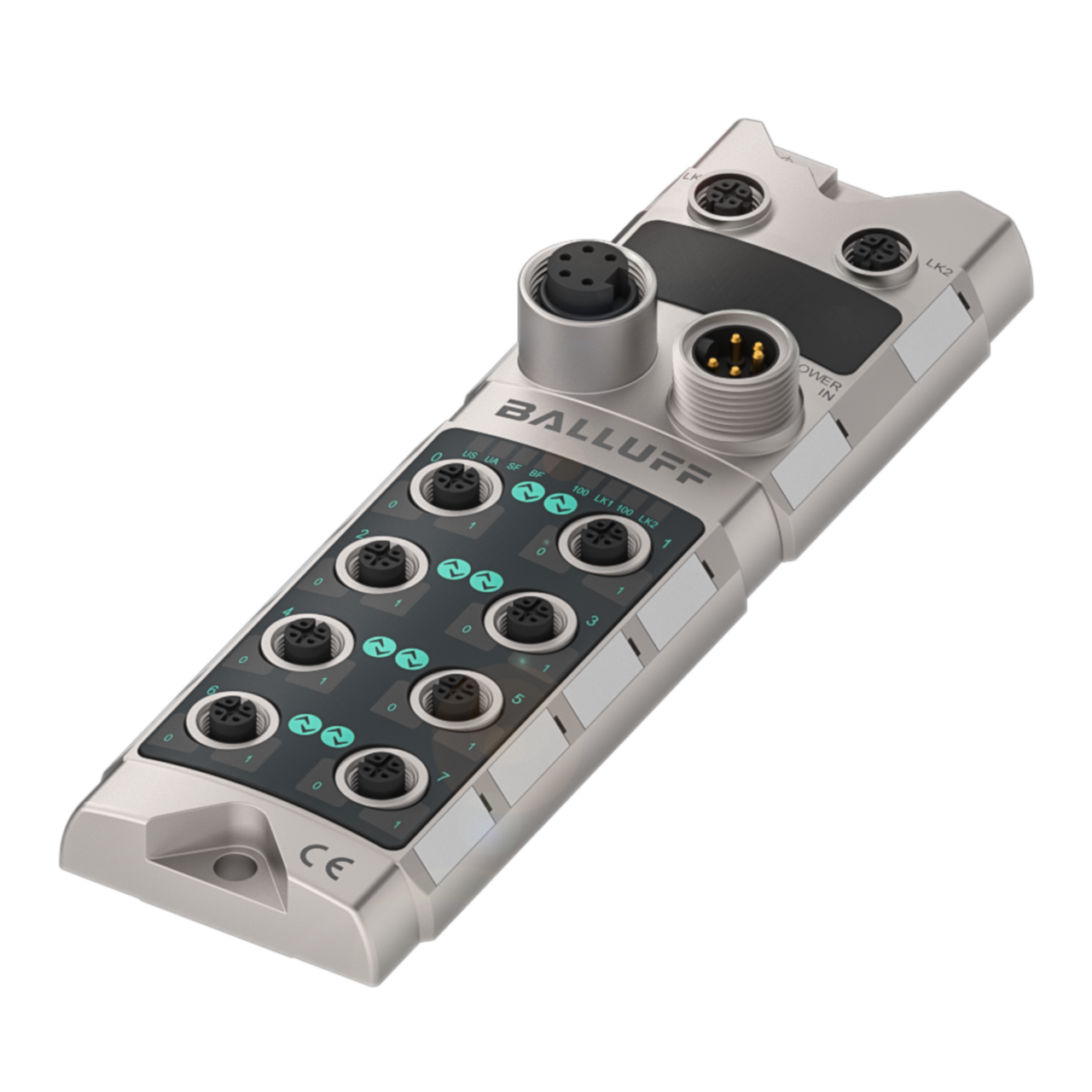

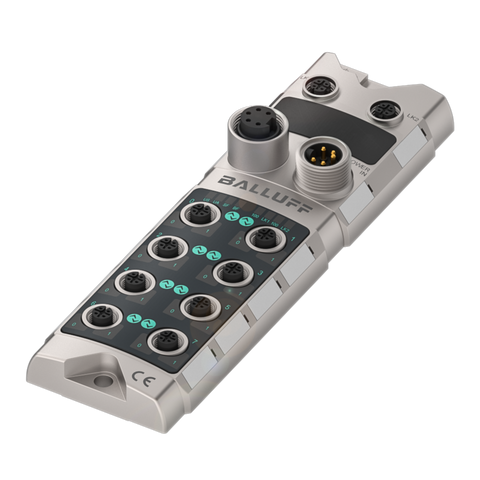

Balluff BNI PG3-508-0C5-Z015 I/O, Network blocks for Profinet, 9A Balluff
Balluff BNI PG3-508-0C5-Z015 I/O, Network blocks for Profinet, 9A Balluff

Balluff BNI PG3-508-0C5-Z015 I/O, Network blocks for Profinet, 9A

Vendor: Balluff
SKU: BNI00HL
Availability: In stock
Product type: Field Sensing & Switching
Please hurry! Only 1 left in stock
Description
Description
x
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE WEEE UKCA cULus
Material: Housing / GripZinc die-casting
Material: GasketFKM 75
Part Width (mm)68mm
Part Length (mm)224mm
Part Height (mm)37.9mm
Connection TypeM12x1 / Female / 4-pin / D-coded (COM 1) - M12x1 / Female / 4-pin / D-coded / (COM2) - 7/8" / Male / 5-pin / (Supplu Voltage IN) - 7/8" / Female / 5-pin / (Supply Voltage OUT) - 8x M12x1 / Female / 5-pin / A-coded (Connection slots)
Data Transmission Rate10/100 Mbit/s
Operating Voltage 18 - 30.2 VDC
Rated Voltage24 V
Mounting Type2-hole screw mount
Documents
Documents
x
Download Datasheet
