Description

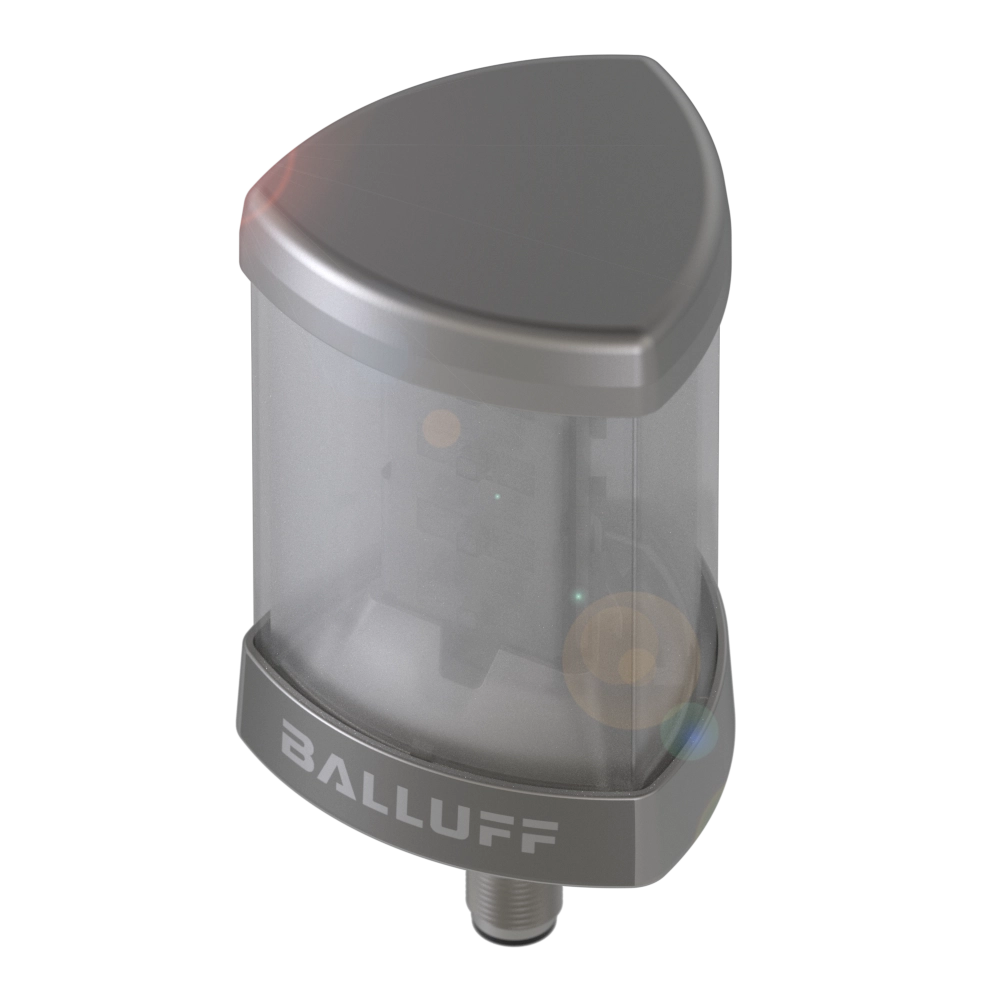

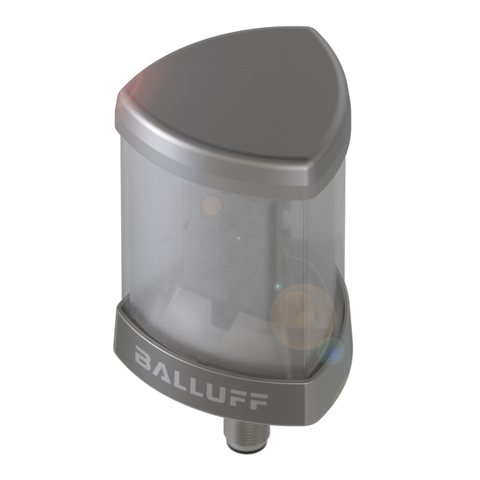

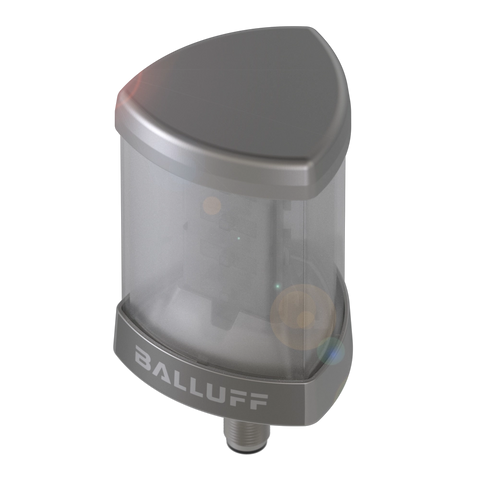

xThe BNI IOL-800-000-Z036 is a Smartlight tower light used for visual signalling on machines and panels, connecting via an M12x1, 4-pin, A-coded male connector for IO-Link integration. It operates from 18 to 30.2 VDC, with a rated voltage of 24 VDC, and features a housing in transparent PC with die-cast zinc and copper-nickel surface protection. Its IP65 rating and CE, UKCA, cULus and WEEE compliance suit it to industrial environments requiring protection against dust and water ingress.
Key specifications
- IP rating: IP65
- Operating voltage: 18 - 30.2 VDC
- Rated voltage: 24 VDC
- Connection: M12x1 / Male / 4-pin / A-code
Specifications
x| IP Rating | IP65 |
| Compliance/Certifications | CE UKCA cULus WEEE |
| Material: Housing / Grip | PC, Transparent, Cu 15 μm, Ni 15 μm ,Die-cast zinc with Copper Nickel Surface protection |
| Part Width (mm) | 60mm |
| Part Length (mm) | 60mm |
| Part Height (mm) | 117mm |
| Weight (g) | 320g |
| Connection Type | M12x1 / Male / 4-pin / A-code |
| Operating Voltage | 18 - 30.2 VDC |
| Rated Voltage | 24 VDC |
