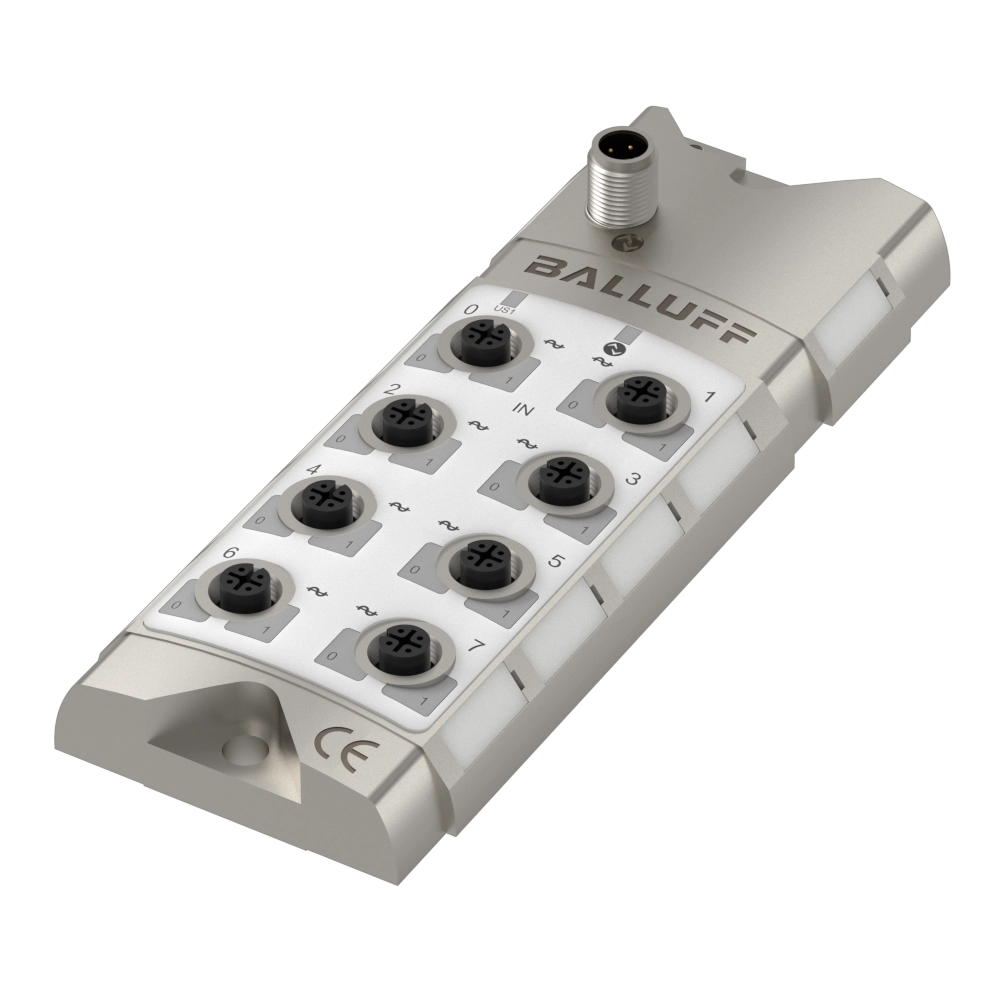

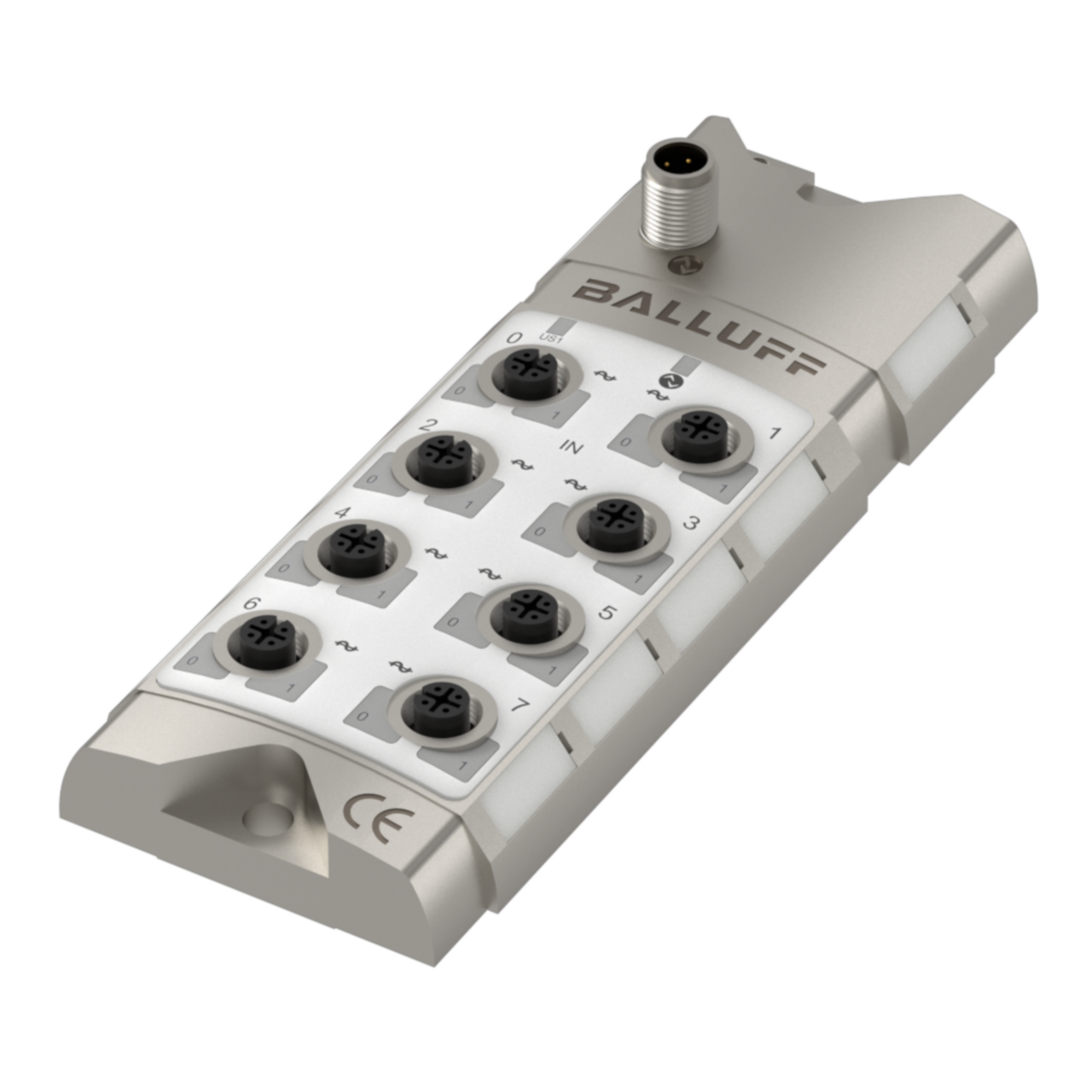

Balluff BNI IOL-719-002-Z012 IO-Link sensor actuator hub Balluff
Balluff BNI IOL-719-002-Z012 IO-Link sensor actuator hub Balluff
Balluff BNI IOL-719-002-Z012 IO-Link sensor actuator hub Balluff
Balluff BNI IOL-719-002-Z012 IO-Link sensor actuator hub Balluff

Balluff BNI IOL-719-002-Z012 IO-Link sensor actuator hub

Interface IO-Link 1.1 Operating voltage Ub 18...30.2 VDC Connection (COM 1) M12x1-Male, 4-pin, A-coded Connection slots 8x M12x1-Female, 5-pin, A-coded Analog inputs 8x Analog, voltage/analog, current/analog, temperature (0…10 V/-10…10 V/0…5 V/-5…5 V/5...10 V/4…20 mA/0…20 mA/Pt100/Pt1000/Thermocouple Type J/Thermocouple Type K)
Vendor: Balluff
SKU: BNI00AJ
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
Interface IO-Link 1.1 Operating voltage Ub 18...30.2 VDC Connection (COM 1) M12x1-Male, 4-pin, A-coded Connection slots 8x M12x1-Female, 5-pin, A-coded Analog inputs 8x Analog, voltage/analog, current/analog, temperature (0…10 V/-10…10 V/0…5 V/-5…5 V/5...10 V/4…20 mA/0…20 mA/Pt100/Pt1000/Thermocouple Type J/Thermocouple Type K)
Specifications
Specifications
x
dimension68 x 31.8 x 181.5 mm
housing_materialDie-cast zinc, nickel-plated
connectionM12x1-Male, 4-pin, A-coded
operating_voltage18...30.2 VDC
ambient_temperature-5...70 °C
ip_ratingIP67, when threaded in
Documents
Documents
x
Download Datasheet
