Description

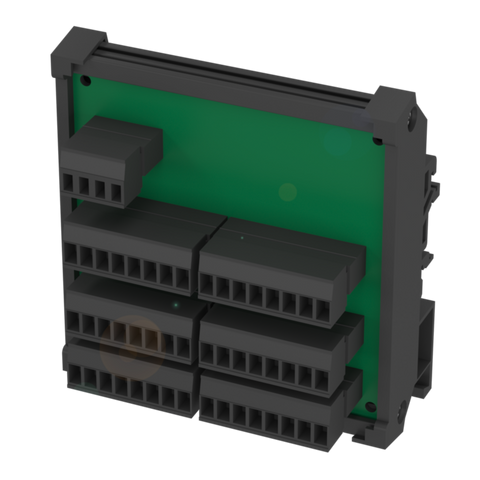

xThis I/O module features 16 PNP digital inputs and outputs and is designed for IO-Link communication. It operates on a 24V DC supply with a maximum current consumption of 1.6A for actuators and 1.0A for sensors. The module is mounted on DIN rails and is suitable for automation applications requiring quick cycle times and precise digital input/output handling.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CE UKCA WEEE |
| Material: Housing / Grip | PA 6.6 |
| Part Depth (mm) | 33.6mm |
| Part Width (mm) | 79mm |
| Part Height (mm) | 84mm |
| Connection Type | 4-pin |
| Connection Style | Screw/plug-in terminals |
| Data Transmission Rate | COM2 (38.4 kBaud) |
| Type Input | 16x PNP, Type 2 |
| IO-Link Process data length input / output | 16x PNP (output) |
| IO-Link Type | IO-Link 1.0 |
| Operating Voltage | 18 - 30.2 VDC |
| Rated Voltage | 24 V |
| Mounting Type | DIN rail mount |
| Current consumption | 80 mA |
