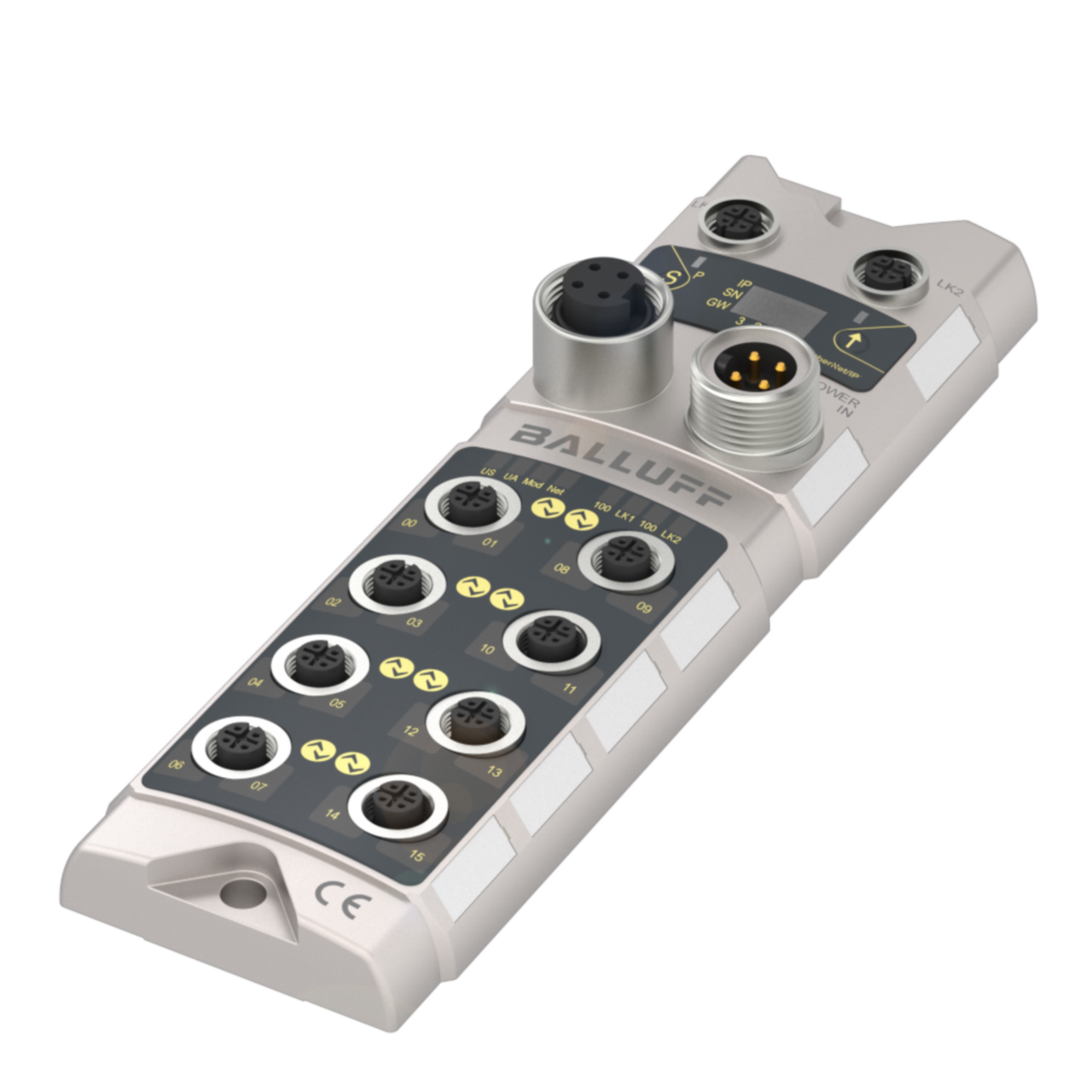

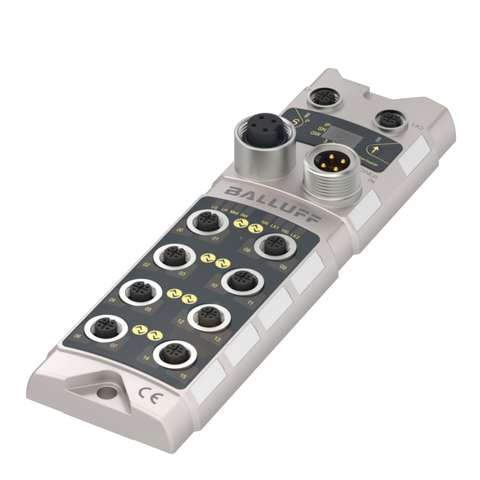

Balluff BNI EIP-508-105-Z015 Network blocks for Ethernet/IP Part number BNI006A

This network block is an I/O Link Master for EtherNet/IP, providing connectivity between field-level I/O Link devices and the control network. It is housed in a die-cast zinc, nickel-plated enclosure rated IP67, suitable for installation directly in the field on machines and panels. The M12x1-Female, 4-pin, D-coded connection supports Ethernet/IP communication, and the unit operates from 18 to 30.2 VDC across an ambient temperature range of -5 to 70 °C.

Key specifications

• IP rating: IP67
• Operating voltage: 18...30.2 VDC
• Connection: M12x1-Female, 4-pin, D-coded
• Operating temperature: -5...70 °C
• Dimensions: 68 x 37.9 x 224 mm
• Material: Die-cast zinc, nickel-plated
