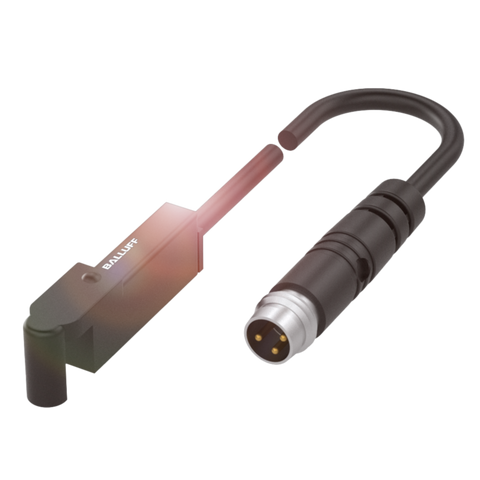

Balluff BMF 305K-PS-C-2-S49-00,5 Magnetic sensor, PNP NO, 3-pin Part number BMF005J

The Balluff BMF 305K-PS-C-2-S49-00,5 is a magnetic sensor with a PNP normally open output and a 3-pin M8x1 male connector, supplied with a 500mm cable. Its LCP housing and PUR jacket give it an IP67 rating, allowing use in environments exposed to dust and moisture. Operating from 10 to 30 VDC with a rated current of 200 mA and a switching frequency of 10000 Hz, it is suited to position detection on pneumatic cylinders and similar automation equipment, using the BMF 305-HW* mounting bracket.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 75 VDC
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open (NO)
• Mounting: Mounting bracket BMF 305-HW*
