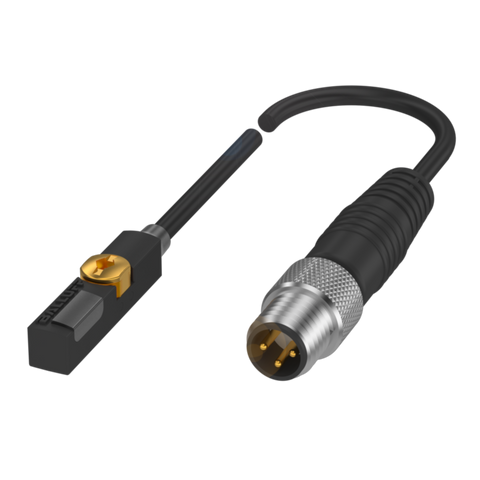

BMF00C4 (BMF 235K-PS-C-2A-SA2-S49-00,3)

Product Overview

Type: Cylinder sensors for multiple slot shapes

Specifications

• Slot Type: T-slot
• Dimension: 23.5 x 5 x 5.5 mm
• Principle of Operation: Magnetic field sensor
• Connection: M8x1-Male, 3-pin
• Cable: PUR, 0.3 m
• Application: Pneumatic cylinder with T-slot. For dimensions, see sketch in product view.
• Mounting Part: Can be installed in T-slot from above
• Housing Material: PA 12
• Switching Output: PNP normally open (NO)
• Switching Frequency: 3000 Hz
• Operating Voltage: 10...30 VDC
• Ambient Temperature: -25...85 °C
• IP Rating: IP67
• Approval/Conformity: cULus, CE, UKCA, WEEE

Product Features

• Connection Type: Cable with connector
• Connector 01, Number of Pins: 3
• Connector 01, Style: M8x1
• Product Line: Standard
• Switching Function: Normally open (NO)
• Switching Output: PNP
• Cable Length Options: 0.3 m, 0.5 m, 1 m, 2 m, 5 m, 7.5 m

Downloads

• Datasheet

Classifications

• ECLASS 10.1: 27-27-01-04
• ECLASS 11.0: 27-27-01-04
• ECLASS 12.0: 27-27-43-01
• ECLASS 13.0: 27-27-43-01
• ECLASS 14.0: 27-27-43-01
• ETIM 4.0: EC002544
• UNSPSC 11: 41111916
