Description

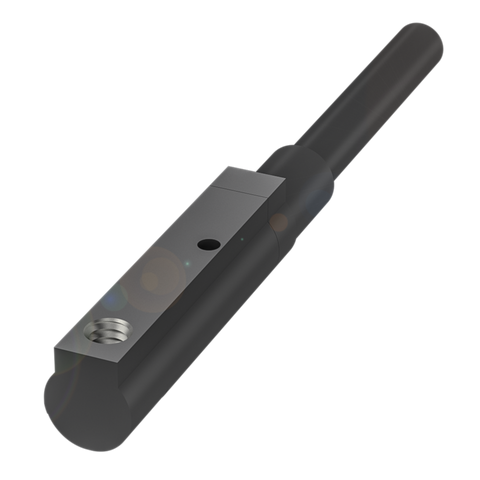

xThe BMF 214K-PS-C-2A-PU-05 is a magnetic field sensor designed for mounting in C-slot cylinder profiles such as SMC, Bimba and Schunk types, allowing direct detection of piston position on pneumatic actuators. It provides a PNP normally open switching output and operates from 10 to 30 VDC, with an IP67-rated PA 12 housing and PUR cable jacket suited to industrial environments. The sensor supports a switching frequency of up to 7000 Hz, making it suitable for applications requiring rapid piston position feedback on cylinder-mounted automation equipment.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Output: PNP normally open (NO)
- Mounting: C-slot SMC Bimba Schunk
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | PA 12 |
| Material: Jacket / Cover Nut | PUR |
| Cable Diameter (mm) | 2.5mm |
| Conductor Cross-section | 0.10 mm² |
| Tightening Torque | 0.03 Nm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 7000 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | C-slot SMC Bimba Schunk |
| Rated Operating Current | 100 mA |
