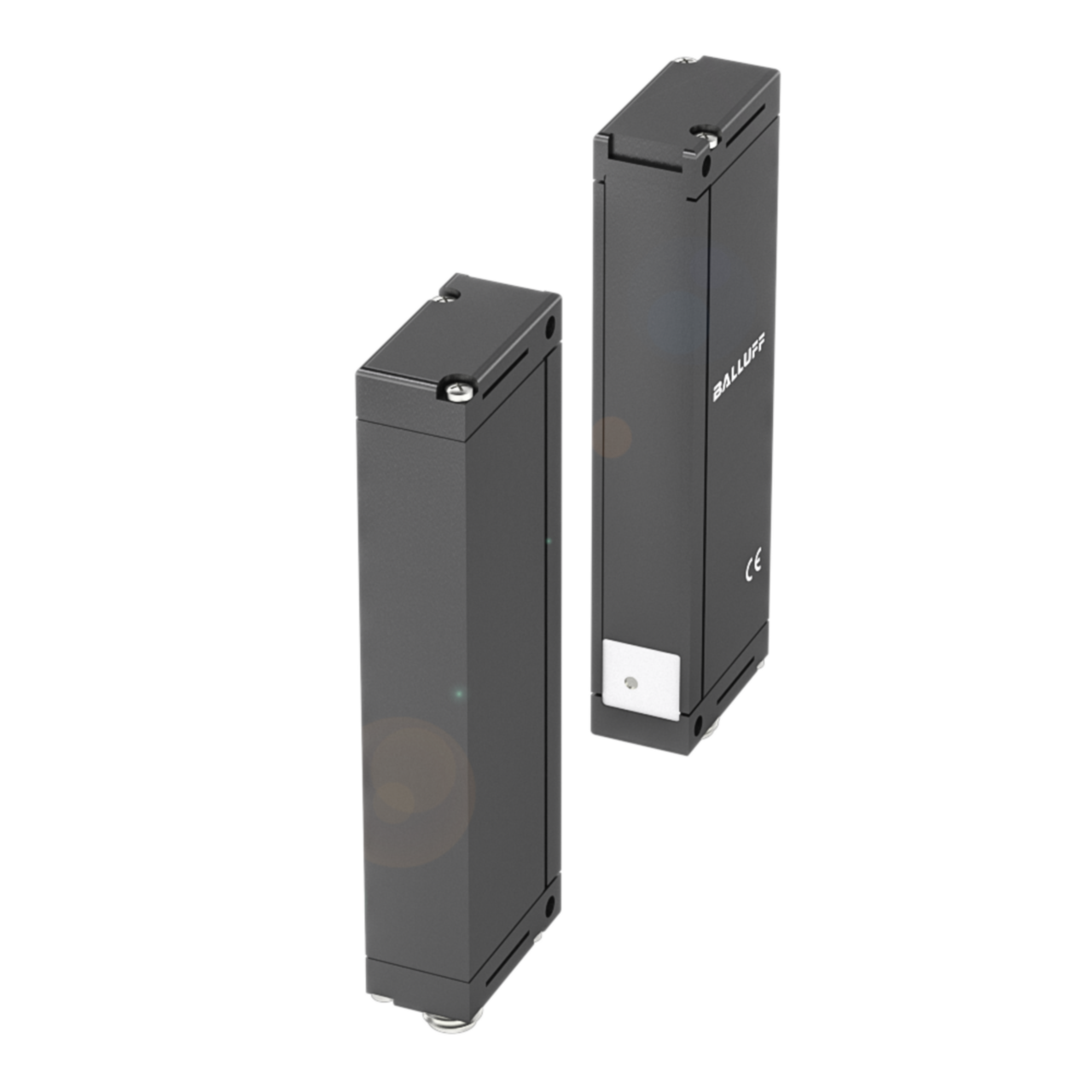

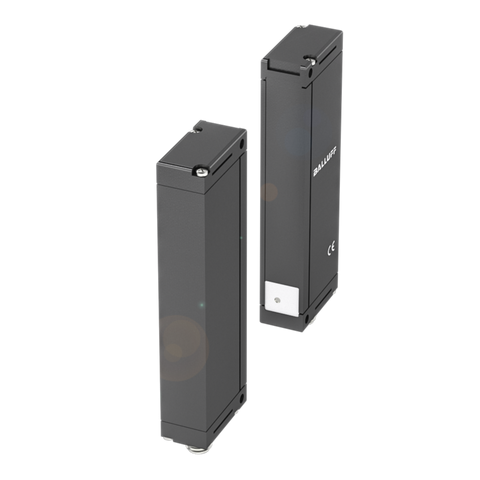

Balluff BLG 1-010-210-070-PV01-SX Light grid, PNP, NO Part number BLG0002

The BLG 1-010-210-070-PV01-SX is a light grid with a PNP normally open switching output, used for object detection across an extended sensing area in automation applications. It features an anodized aluminium housing with an anodized PMMA sensing surface, and connects via an M12x1 male connector. The unit operates at 20-28 VDC (rated 24V), switches at up to 250Hz, and is fitted for screw mounting using M4 fixings, suiting installation directly onto machine frames or panel structures.

Key specifications

• Operating voltage: 20 - 28 VDC
• Rated voltage: 24V
• Connection: M12x1 / Male
• Output: PNP normally open (NO)
• Mounting: Screw M4
