Description

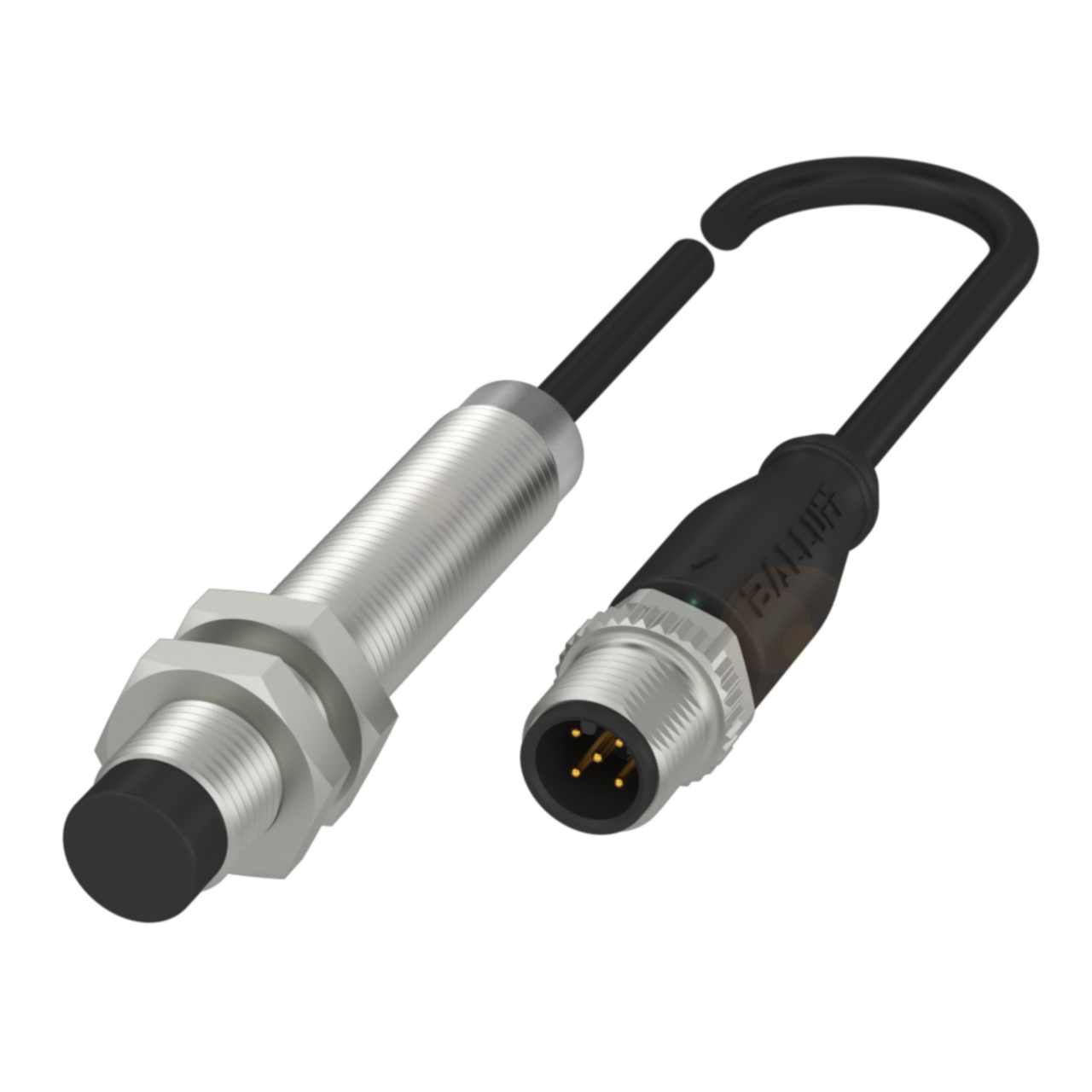

xThe BIC 1I1-P2A05-M12MM-BPX0-003-M45A is an inductive coupler from Balluff that provides contactless transfer of signals or power across a non-metallic gap, enabling connections where physical connectors are impractical due to movement, vibration or contamination. It features an M12x1, 5-pin connector with a 300mm PUR cable, a nickel-plated brass housing and IP67 protection, allowing use in exposed industrial environments. Rated at 24 V and 50 mA with a switching frequency of 60 Hz, it is suited to non-flush mounting in automation panels and machine builds requiring reliable field-level connectivity.
Key specifications
- IP rating: IP67
- Rated voltage: 24 V
- Connection: M12x1 / 5-pin
- Mounting: Non-flush mounting
- Bending radius: Fixed cable: 5 x Diameter / Flexible cable: 10 x Diameter
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE WEEE |
| Material: Housing / Grip | Nickel-plated brass, coated |
| Material: Jacket / Cover Nut | PUR |
| Bending Radius | Fixed cable: 5 x Diameter / Flexible cable: 10 x Diameter |
| Part Length (mm) | 68mm |
| Cable Length (mm) | 300mm |
| Part Diameter (mm) | 12mm |
| Cable Diameter (mm) | 4.2mm |
| Connection Type | M12x1 / 5-pin |
| Connection Style | Connector, 0.30 m, PUR |
| Tightening Torque | 0.6 Nm |
| Switching Frequency (Hz) | 60 Hz |
| Rated Voltage | 24 V |
| Mounting Type | Non-flush mounting |
| Rated Operating Current | 50 mA |
