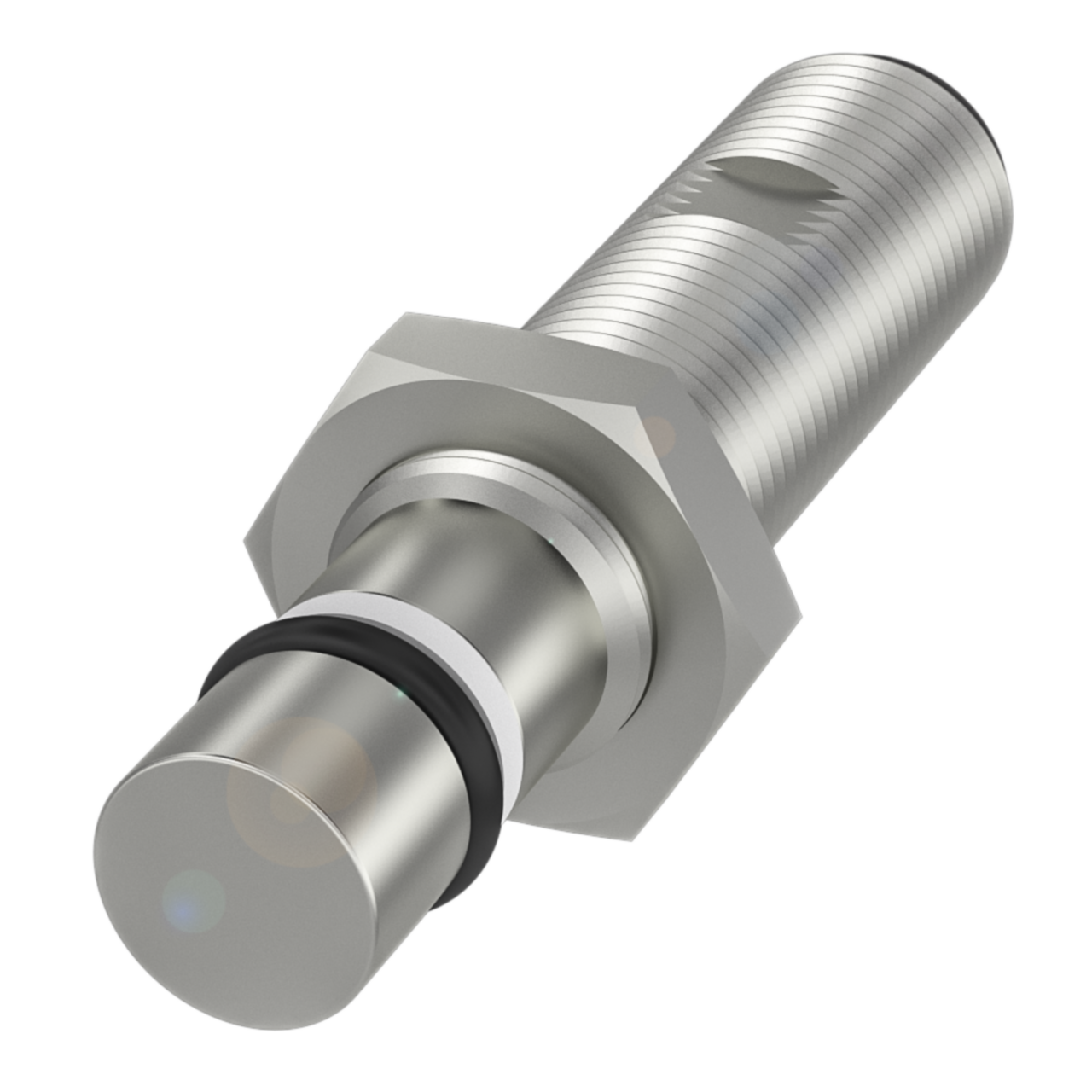

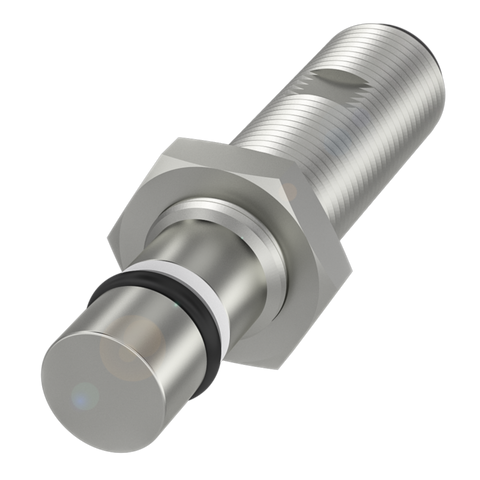

Balluff BHS B249V-PSD15-S04 Pressure-rated sensor, Ø 12 x 56 Part number BHS005Y

The BHS B249V-PSD15-S04 is a cylindrical sensor with a stainless steel housing and ceramic sensing surface, rated to IP68 for use in harsh or washdown environments. It provides a PNP normally open output with a switching frequency of 400 Hz, operating from 10 to 30 VDC, and connects via an M12x1, 4-pin, A-coded male connector. Its flush-mounting format and Ø12 x 56 body suit installation in industrial automation panels and machinery where space is limited and pressure resistance is required.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
