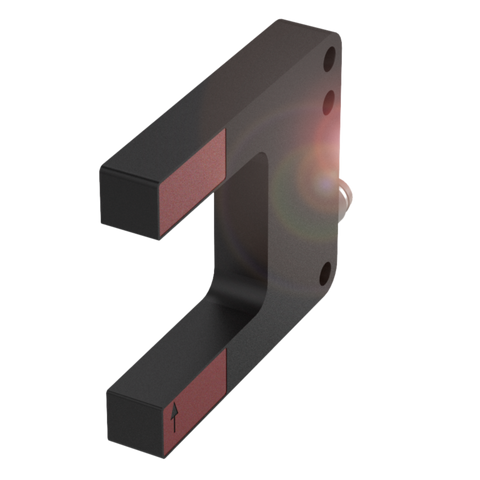

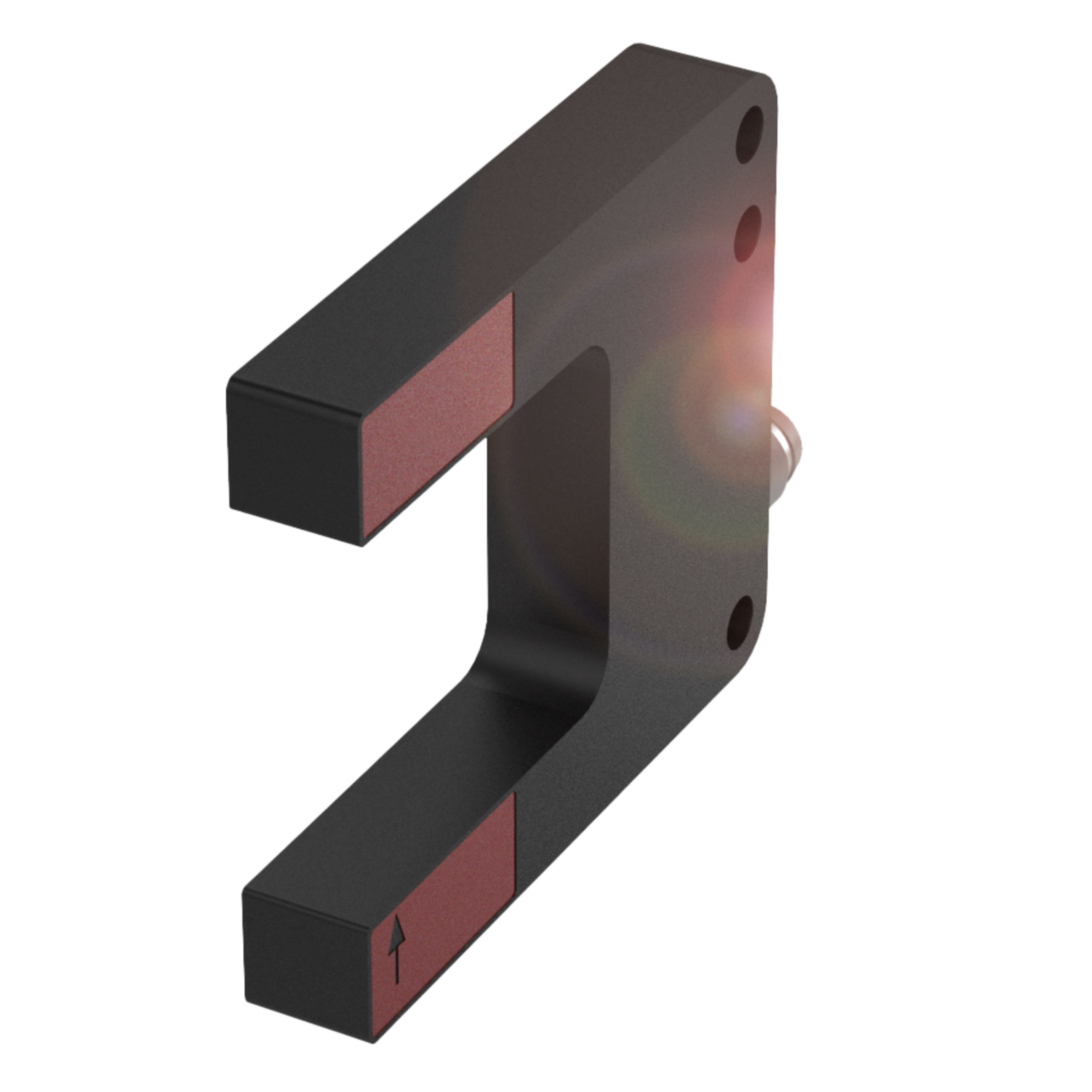

Balluff BGL 30A-001-S49 Fork sensor, PNP, 10 x 50 x 68mm Part number BGL0016

This fork sensor uses a fixed optical gap to detect the presence or interruption of small parts, labels or webs passing through it, with a PNP output offering both normally open and normally closed switching. The zinc die-cast housing and glass sensing surface, combined with an IP67 rating, suit use in demanding industrial environments where dust or moisture ingress is a concern. Connection is via an M8x1 three-pin male connector, and the sensor mounts using M4 screws, making it suitable for integration into compact automation and packaging machinery. It operates from a 10-30 VDC supply and supports switching frequencies up to 1500 Hz.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open/normally closed (NO/NC)
• Mounting: Screw M4
