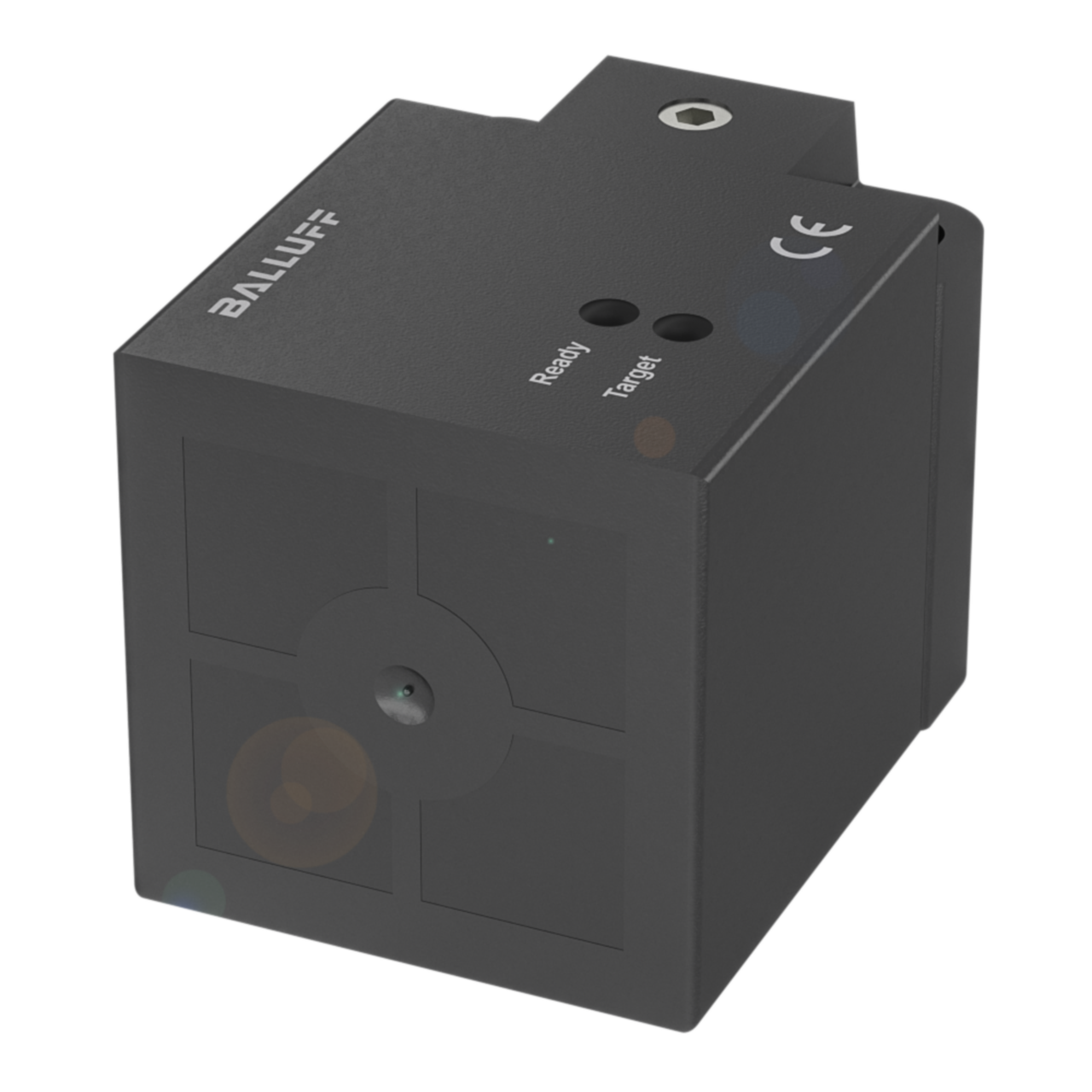

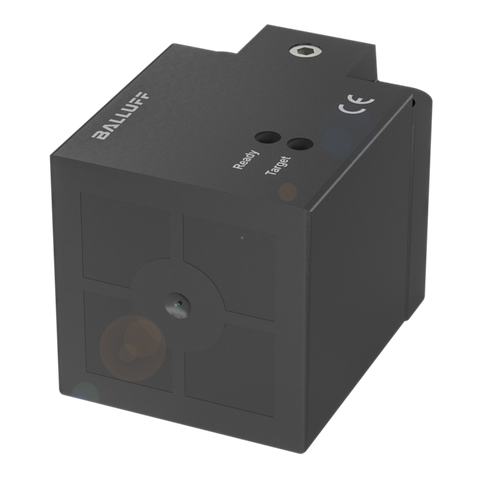

Balluff BES Q40KFU-PAC35E-S04G Inductive sensor, PNP, NO/NC Part number BES021H

This inductive sensor detects the presence of metal targets without physical contact, switching a PNP output in normally open or normally closed configuration at a rated operating distance of 35mm. Housed in PBT with an IP67 rating, it is designed for non-flush mounting in environments where dust or moisture exposure is a concern. Connection is made via an M12x1, 4-pin A-coded male connector, and the sensor operates from a 10-30VDC supply with a rated current of 200 mA. It is typically used in industrial automation panels and machinery for object detection and position sensing tasks.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open/normally closed (NO/NC)
• Mounting: Non-flush mounting
