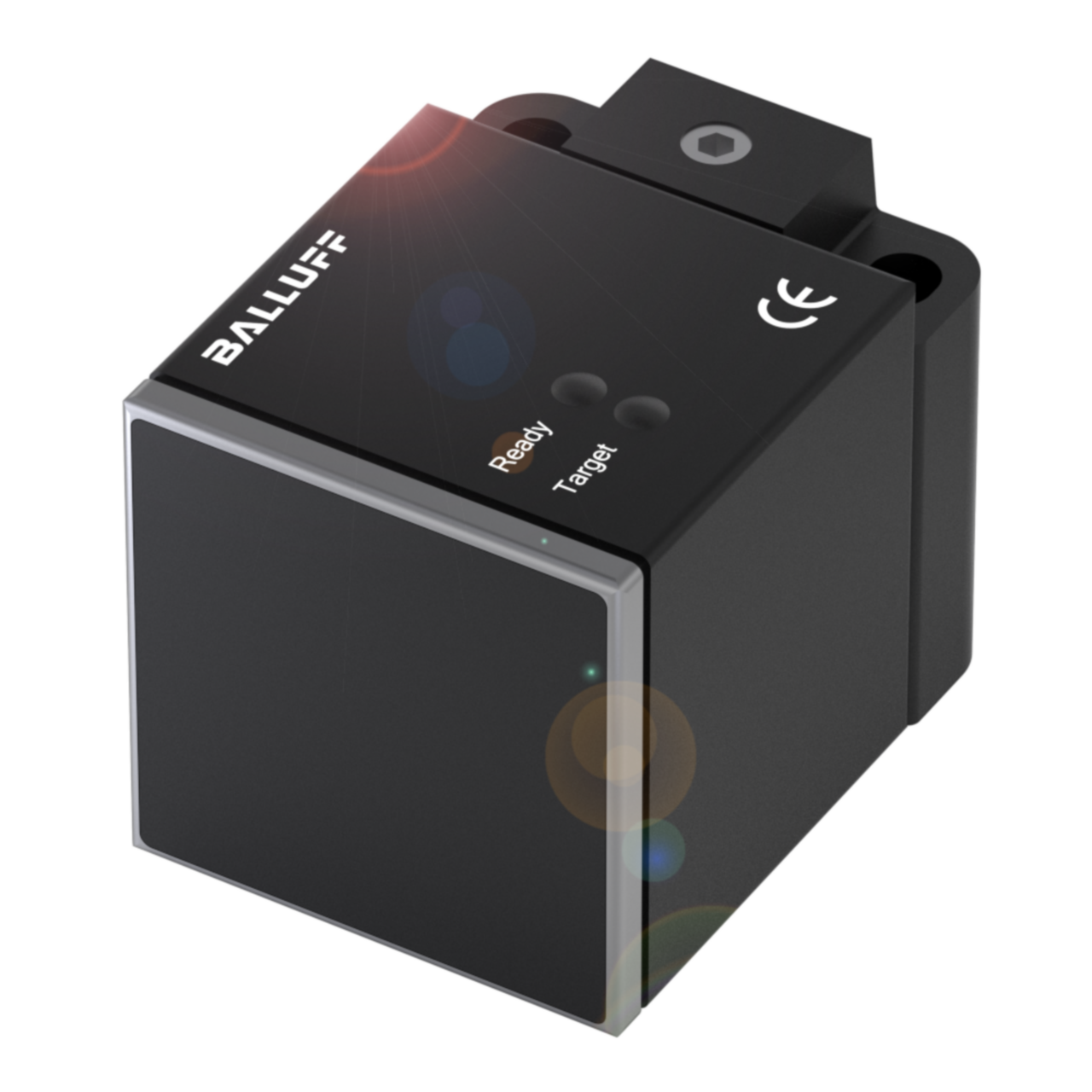

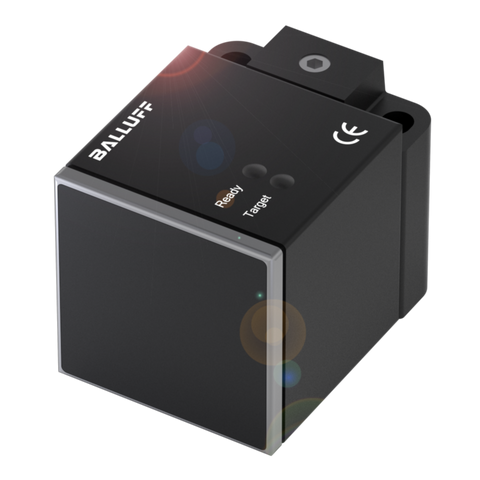

Balluff BES Q40KFU-PAC20A-S04G Inductive sensor, PNP, NO/NC Part number BES0216

This inductive sensor detects the presence of metallic targets without physical contact, providing a PNP output configurable as normally open or normally closed. Housed in PBT with an IP67 rating, it is suited to flush mounting in panels and machine applications where protection against dust and moisture ingress is required. Connection is made via an M12x1, 4-pin, A-coded male connector, operating from a 10-30 VDC supply with a rated operating current of 200 mA.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open/normally closed (NO/NC)
• Mounting: Flush mounting
