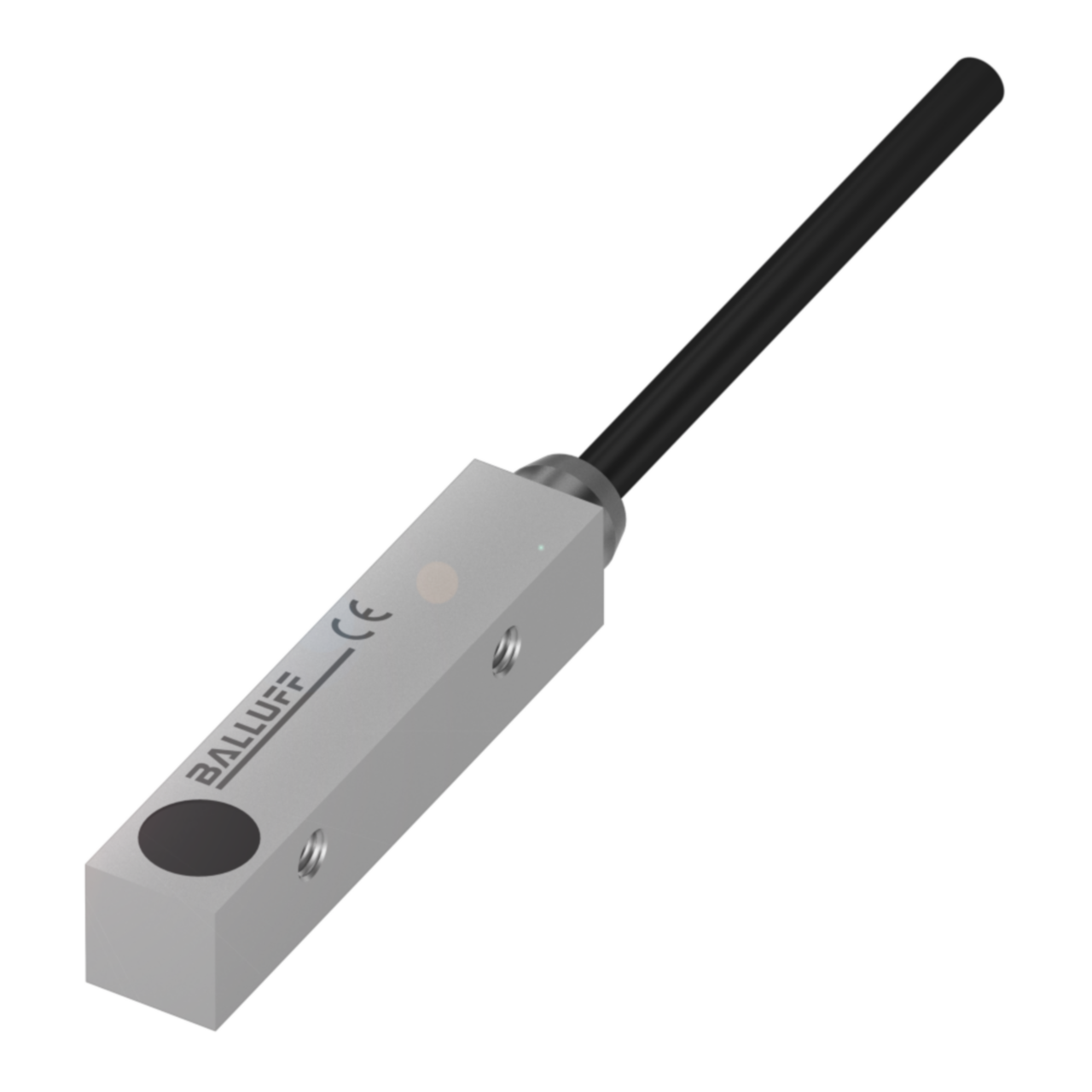

Balluff BES Q08ZC-PSC20B-BP02 Inductive sensor, PNP, NO Part number BES01TN

This inductive sensor detects metal targets at a rated operating distance of 2mm and provides a PNP normally open output with a switching frequency of 3000 Hz, suitable for high-speed detection tasks. The zinc die-cast housing with PUR jacket and IP67 rating supports use in harsh industrial environments, whilst flush mounting allows installation in confined machine or panel spaces. It operates from a 10-30 VDC supply and connects via a 2.00 m PUR cable, making it suitable for automation applications requiring reliable metal object sensing.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
• Mounting: Flush mounting
