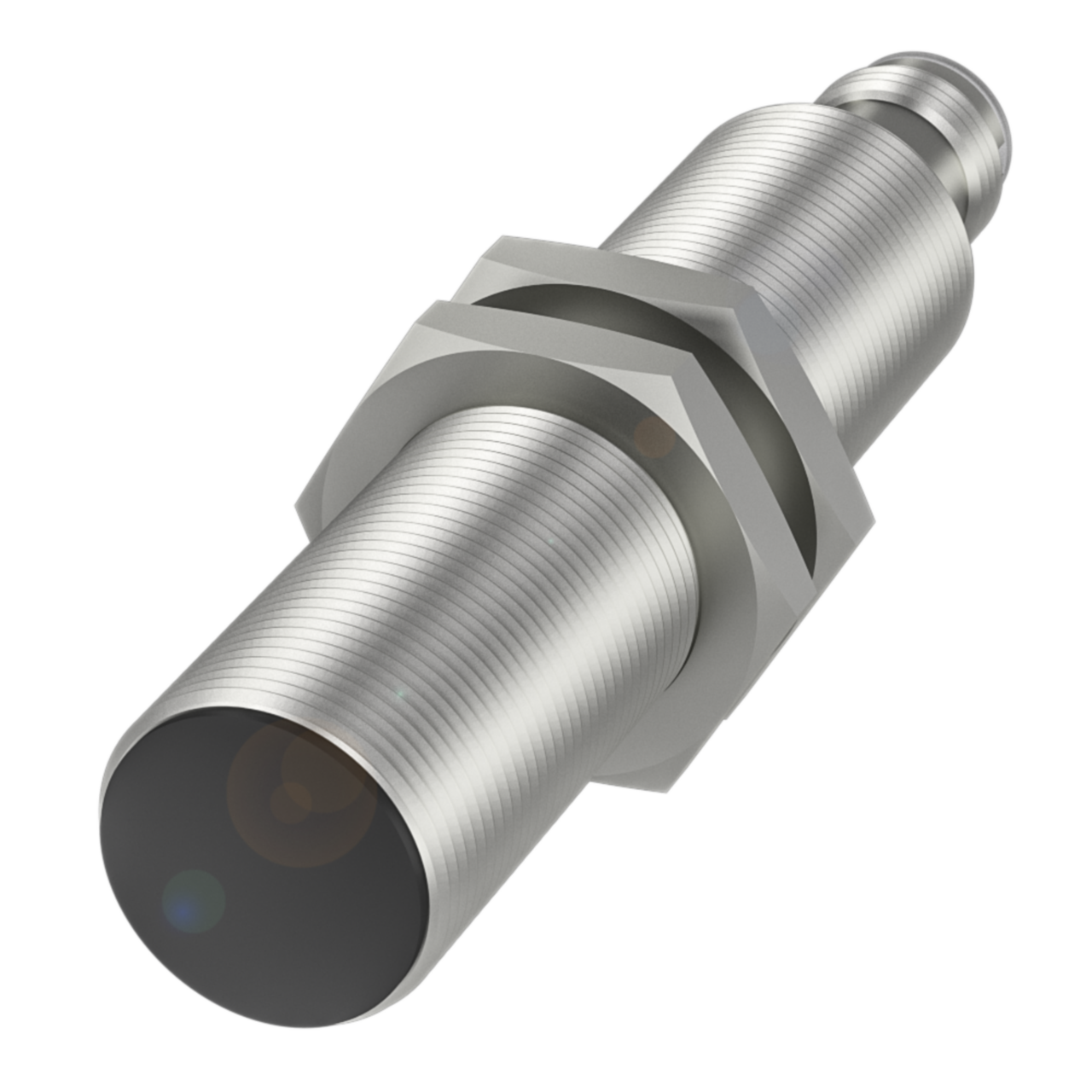

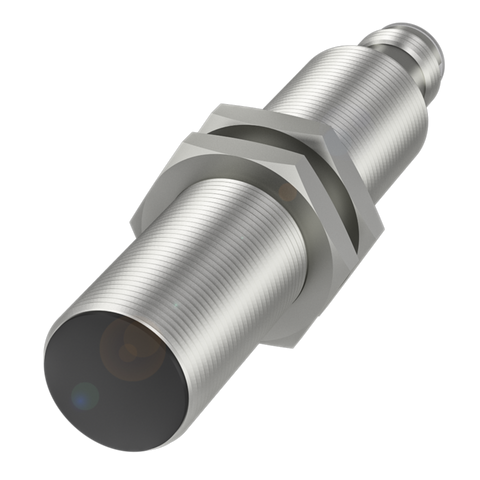

Balluff BES M18MP-PAH50B-S04G, Inductive sensor, PNP, NO/NC Part number BES04RH

This M18x1 inductive sensor detects metallic targets and provides a PNP output configurable as normally open or normally closed, connecting via an M12x1 4-pin male A-coded connector for straightforward panel or machine wiring. The brass housing with nickel-free coating and PBT sensing face, combined with an IP68 rating, suit installation in washdown or contaminated industrial environments. Operating from 10 to 55 VDC with a switching frequency of 2000 Hz, it is suited to automation applications requiring reliable proximity detection of metal parts.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 55 VDC
• Rated voltage: 24V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open/normally closed (NO/NC)
