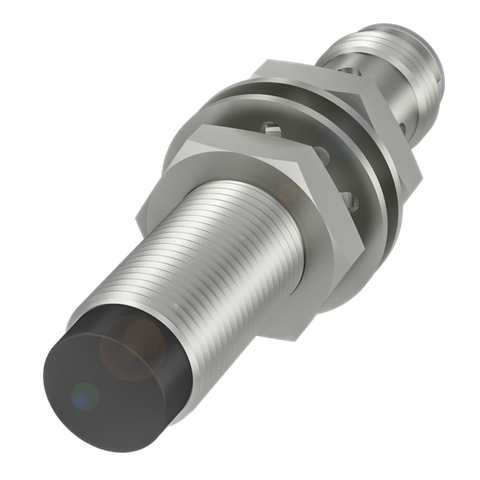

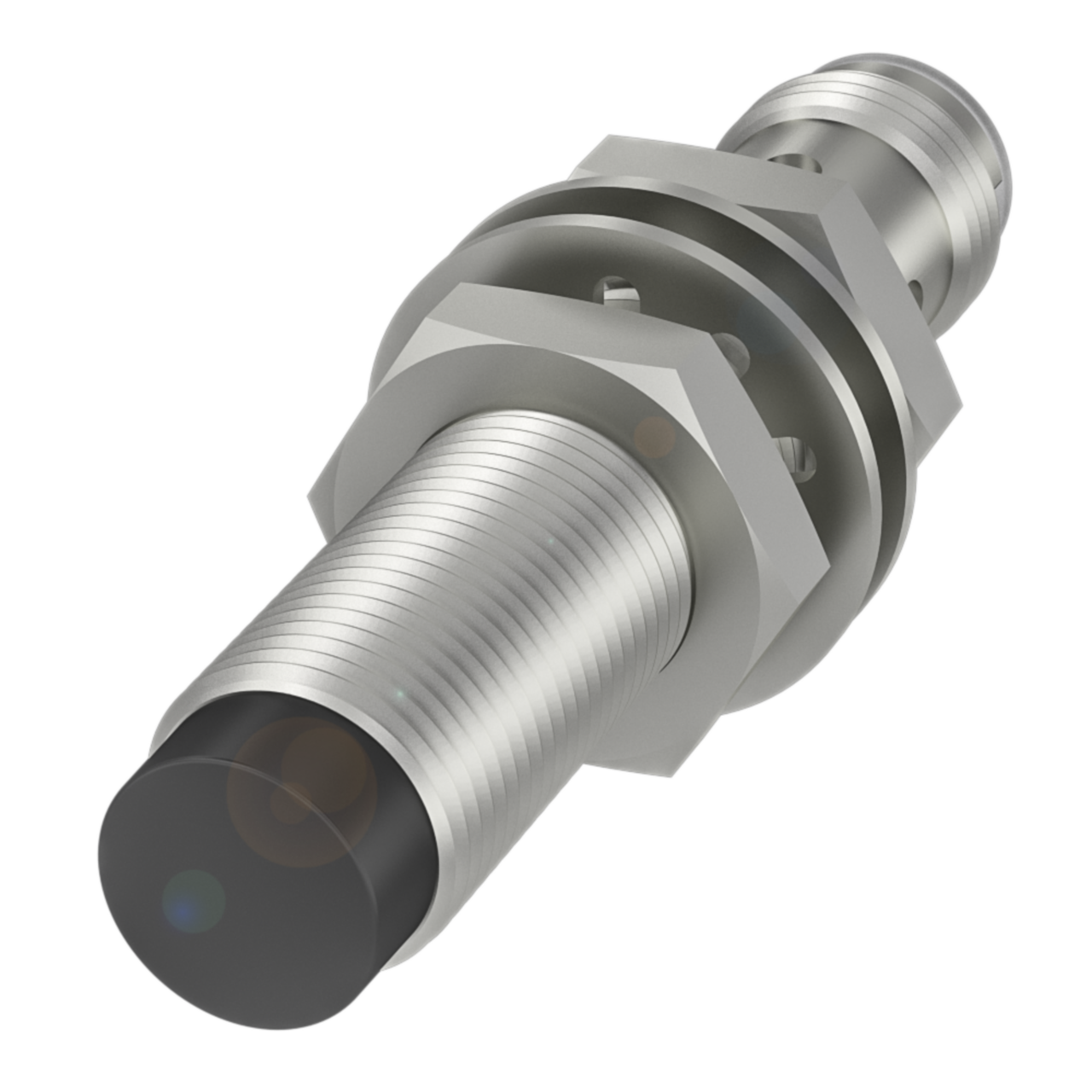

Balluff BES M12MF1-POC10F-S04G Inductive sensor, PNP, NC Part number BES02WP

This is an M12x1 inductive proximity sensor with a PNP normally closed output, rated for a 10mm operating distance and non-flush mounting. The brass housing with nickel-free coating and PBT sensing surface, combined with an IP68 rating, suit installations exposed to moisture or washdown conditions. It operates from a 10 to 30 VDC supply and connects via a 3-pin A-coded M12 male connector, making it suitable for detecting metallic targets in industrial automation and machine building applications.

Key specifications

• IP rating: IP68, according to BWN Pr 20
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 3-pin / A-coded
• Output: PNP normally closed (NC)
• Mounting: Non-flush mounting
