Balluff BES M08MH1-POC15B-S04G Inductive sensor, PNP, NC Part number BES0026

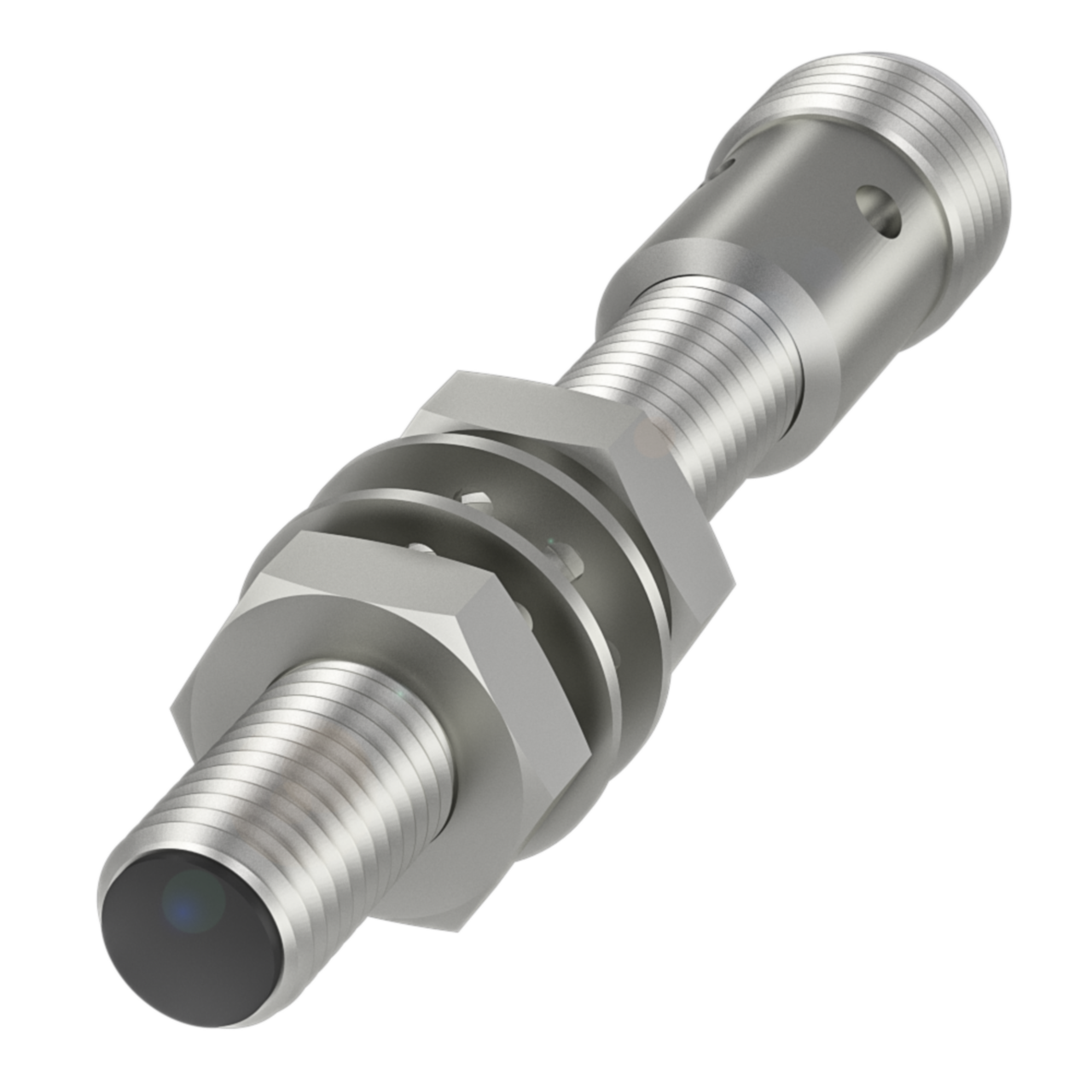

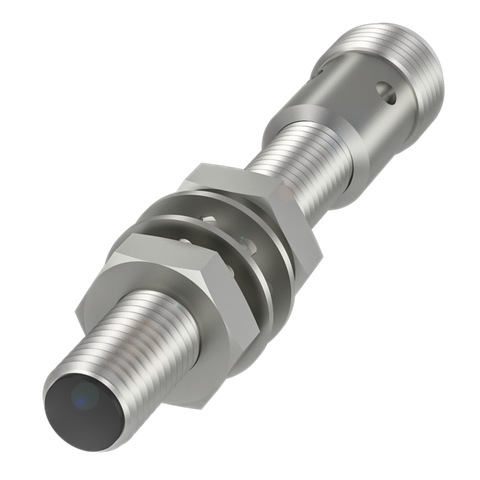

This Balluff BES M08MH1-POC15B-S04G is an inductive proximity sensor with a PNP normally closed output, housed in an M8x1 nickel-plated brass body suited to flush mounting. It detects targets within a 1.5 mm sensing range and switches at frequencies up to 1000 Hz, operating from a 12...30 VDC supply and connecting via an M12x1 four-pin male connector. With an IP67 rating and an operating temperature range of -25 to 70 °C, it is suited to automation panels and machine applications requiring compact, flush-mountable position or presence detection.

Key specifications

• IP rating: IP67
• Operating voltage: 12...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Output: PNP normally closed (NC)
• Operating temperature: -25...70 °C
• Dimensions: Ø 8 x 65 mm
