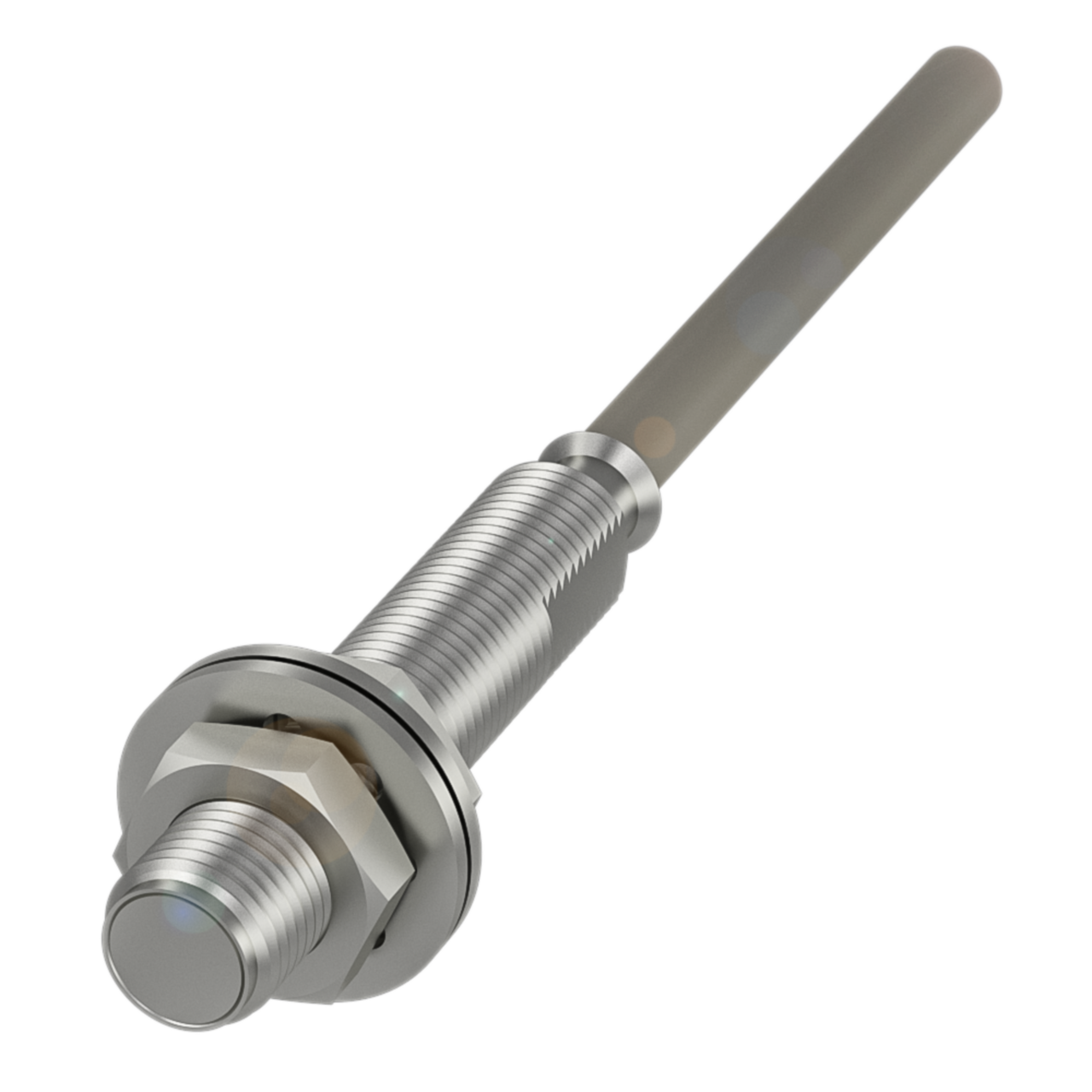

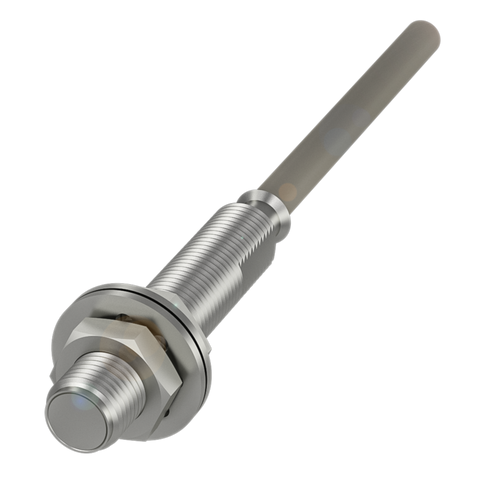

Balluff BES M05ED-PSD08B-ES02-T Inductive sensor, PNP, NO
Balluff BES M05ED-PSD08B-ES02-T Inductive sensor, PNP, NO

Balluff BES M05ED-PSD08B-ES02-T Inductive sensor, PNP, NO Part number BES05RP

The Balluff BES M05ED-PSD08B-ES02-T is an inductive sensor. It operates from 10 - 30 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.Key specifications IP rating: IP67 Operating voltage: 10 - 30 VDC Rated voltage: 24 V Output: PNP normally open (NO)
Vendor: Balluff
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

The Balluff BES M05ED-PSD08B-ES02-T is an inductive sensor. It operates from 10 - 30 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.

Key specifications

  • IP rating: IP67
  • Operating voltage: 10 - 30 VDC
  • Rated voltage: 24 V
  • Output: PNP normally open (NO)
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Jacket / Cover NutSilicone
Material: Sensing Surface / ContactsCeramic
SizeM5x0.5
Cable Length (mm)2 000mm
Cable Diameter (mm)3.15mm
Tightening Torque1.5 Nm
Rated Operating Distance (mm)0.8mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)1.5 kHz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
