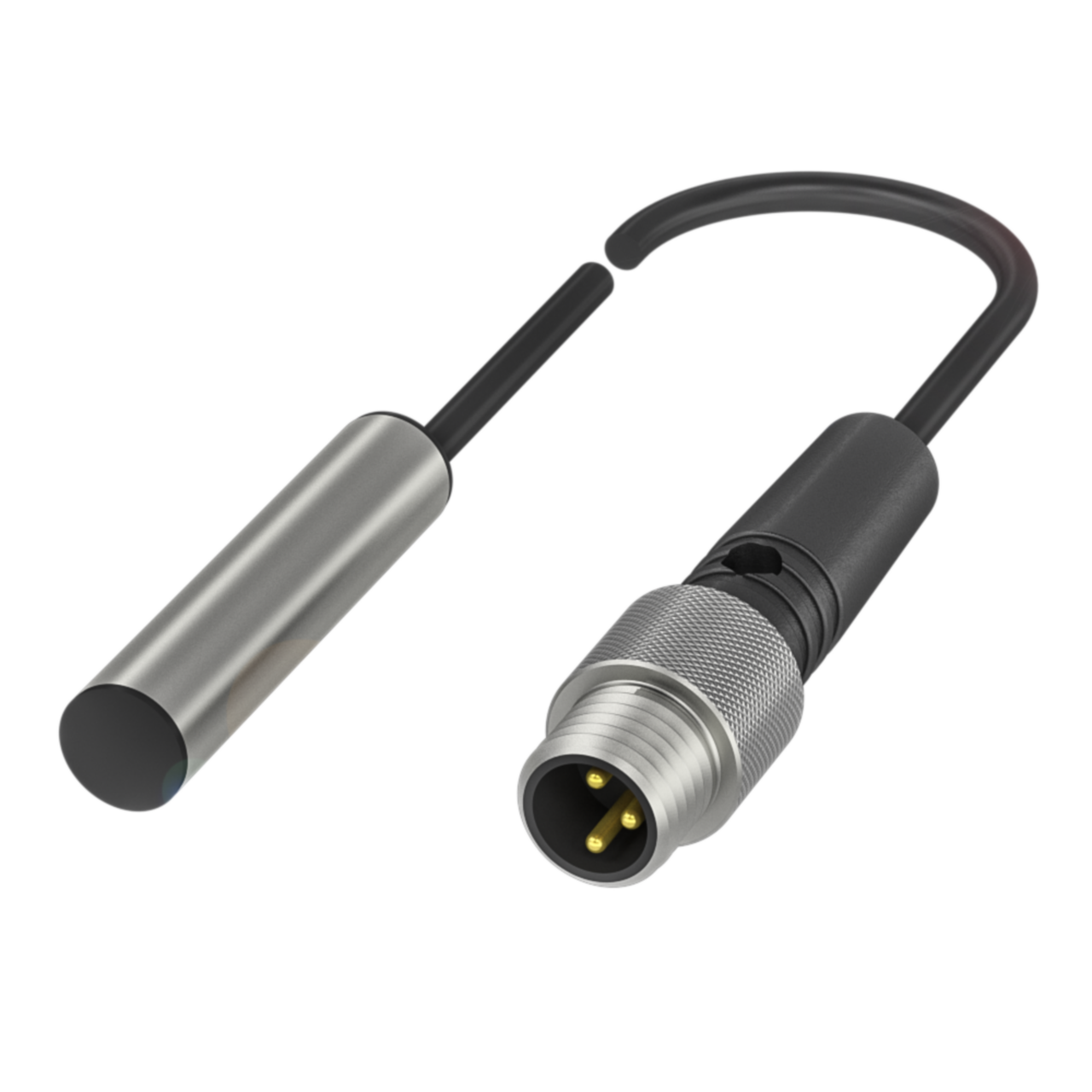

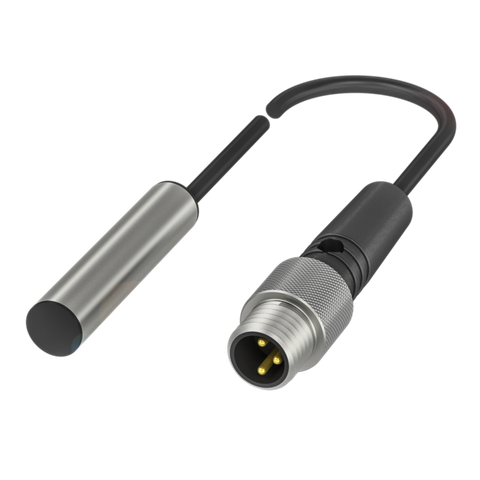

Balluff Inductive standard sensor, PNP, NO, D6.5, flush, M8 3-pin Part number BES00ZA

This inductive sensor detects metal targets at a rated operating distance of 1.5 mm and provides a PNP normally open switching output. Its flush mounting design and D6.5 stainless steel housing suit installation in compact panel and machine locations where the sensor face sits level with the mounting surface. Connection is made via an M8x1 3-pin male connector on a 0.30 m PUR cable, with an IP68 rating for use in wet or washdown environments. The sensor operates from a 10-30 VDC supply and switches at up to 5000 Hz, making it suitable for high-speed detection tasks in industrial automation.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open (NO)
• Mounting: Flush mounting
