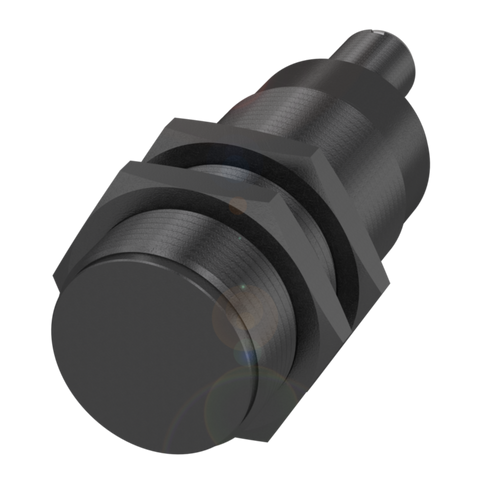

Balluff BCS M30BBI2-NSC15D-S04K Capacitive sensor, NPN, NO Part number BCS00NE

The BCS M30BBI2-NSC15D-S04K is a capacitive proximity sensor with an M30x1.5 thread, housed in PBT and providing an IP67 rating for use in wet or contaminated environments. It detects targets at a rated operating distance of 15 mm and switches an NPN normally open output at frequencies up to 100 Hz, operating from a 10-30 VDC supply. Connection is via an M12x1, 3-pin, A-coded male connector, making it suitable for panel and machine-mounted presence detection in industrial automation applications.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 3-pin / A-coded
• Output: NPN normally open (NO)
