Description

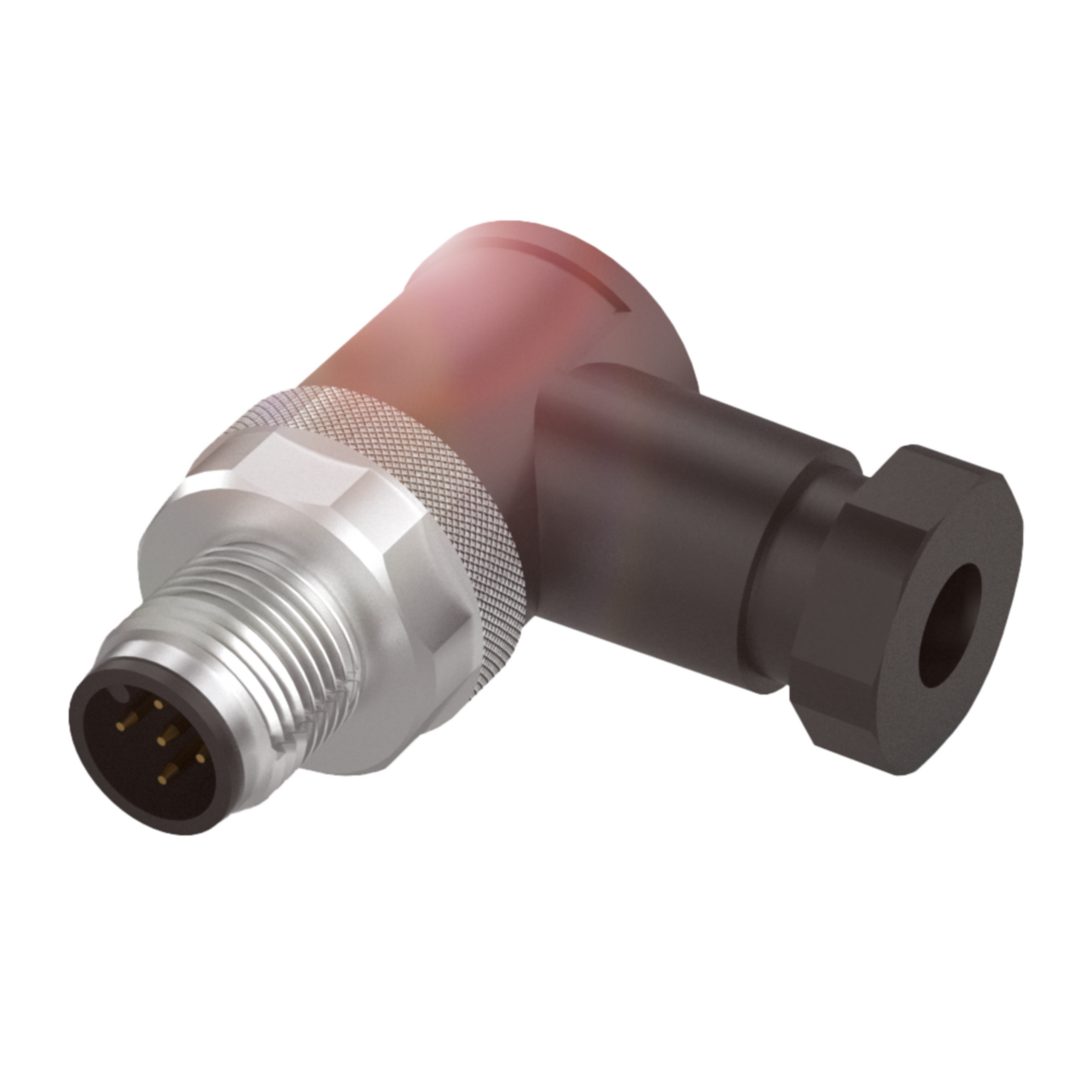

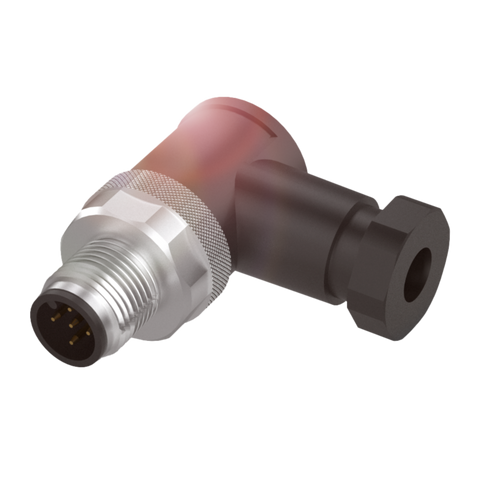

xThis is a field attachable M12 connector from Balluff, featuring a 5-pin, A-coded, angled male thread with screw terminal connections, designed for on-site assembly to cables of 6mm to 8mm diameter. The PBT housing and stainless steel cover nut, combined with an IP67 rating, suit it to industrial environments where sensors and actuators require reliable field wiring. Rated at 125 VDC/VAC and 4 A, it is typically used in automation and control panels for connecting field devices such as proximity sensors or photoelectric switches.
Key specifications
- IP rating: IP67
- Operating voltage: 125 VDC / 125 VAC
- Connection: M12x1 / Male / angled / 5-pin / A-coded
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE Ecolab WEEE |
| Material: Housing / Grip | PBT |
| Material: Jacket / Cover Nut | Stainless steel |
| Material: Sensing Surface / Contacts | Brass / PA |
| Cable Diameter (mm) | 6mm ... 8mm |
| Connection Type | M12x1 / Male / angled / 5-pin / A-coded |
| Connection Style | Screw Terminals |
| Tightening Torque | 0.6 Nm |
| Operating Voltage | 125 VDC / 125 VAC |
| Current Rating / Rated Current | 4 A |
