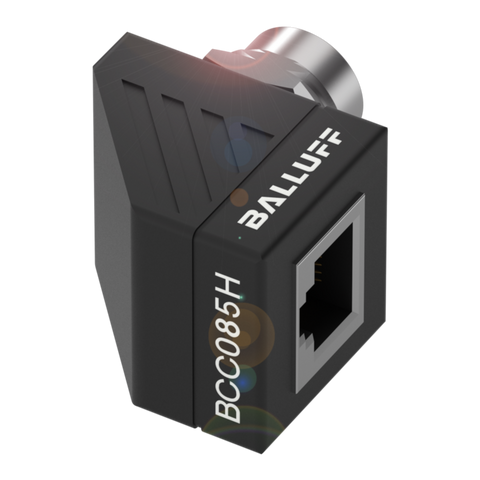

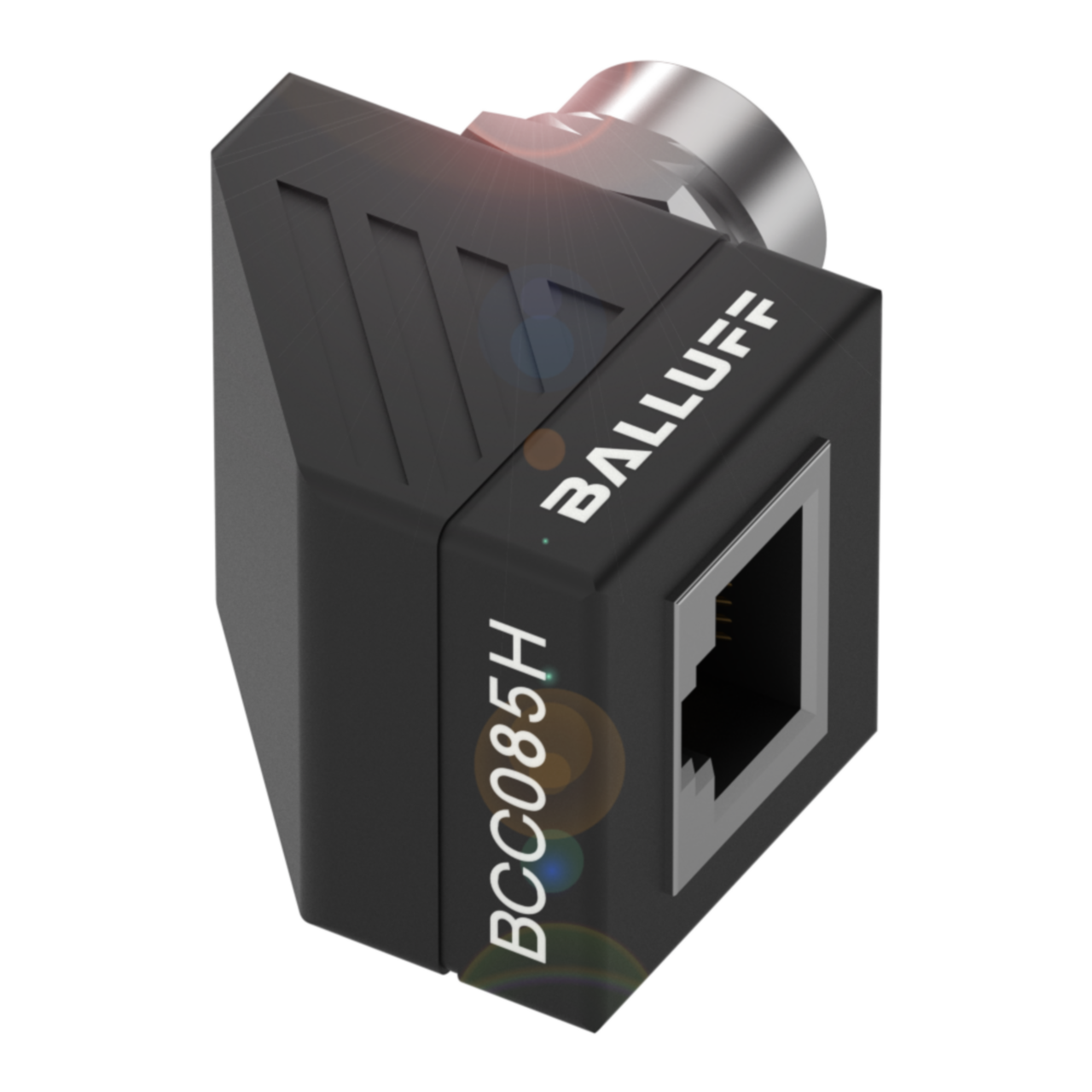

Balluff BCC M424-E814-BG-RM013-000 Bulkhead, M12 female/ RJ45 female Part number BCC085H

This bulkhead connector provides a panel-mounted transition between an M12, 4-pin, D-coded female connection and an RJ45 female connection, with the M12 side angled for cable routing. It is rated IP67/IP20 and suited to an ambient temperature range of -20 to 80°C, allowing use in industrial enclosures where a sealed...
Vendor: Balluff
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This bulkhead connector provides a panel-mounted transition between an M12, 4-pin, D-coded female connection and an RJ45 female connection, with the M12 side angled for cable routing. It is rated IP67/IP20 and suited to an ambient temperature range of -20 to 80°C, allowing use in industrial enclosures where a sealed panel feed-through between fieldbus or Ethernet cabling is required. The operating voltage is specified at 60 VDC/60 VAC.

Key specifications

  • IP rating: IP67/IP20
  • Operating voltage: 60 VDC / 60 VAC
  • Connection: M12x1-Female, angled, 4-pin, D-coded
  • Operating temperature: -20...80 °C
Specifications
Specifications
x
connectionM12x1-Female, angled, 4-pin, D-coded
operating_voltage60 VDC / 60 VAC
ambient_temperature-20...80 °C
ip_ratingIP67/IP20
approval_conformityWEEE
