Balluff BCC M334-0000-10-000-31X450-000 Field attachable, female, 4A Part number BCC06Z5

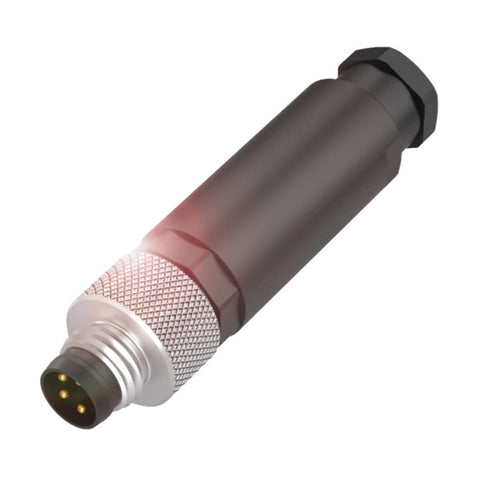

This is a field-attachable M8x1 male connector with a 4-pin, A-coded straight connection, terminated using screw terminals for cable diameters between 2.5mm and 5mm. The housing and grip are constructed from PA/PBT, with brass used for the jacket, cover nut and sensing contacts, giving an IP67 rating suited to sensor and actuator wiring in industrial environments. It is rated for operating voltages up to 60 VDC/60 VAC and a current of 4 A, with a specified tightening torque of 0.4 Nm. The connector carries CE, cULus and WEEE compliance markings.

Key specifications

• IP rating: IP67
• Operating voltage: 60 VDC / 60 VAC
• Connection: M8x1 / Male / straight / 4-pin / A-coded
