Description

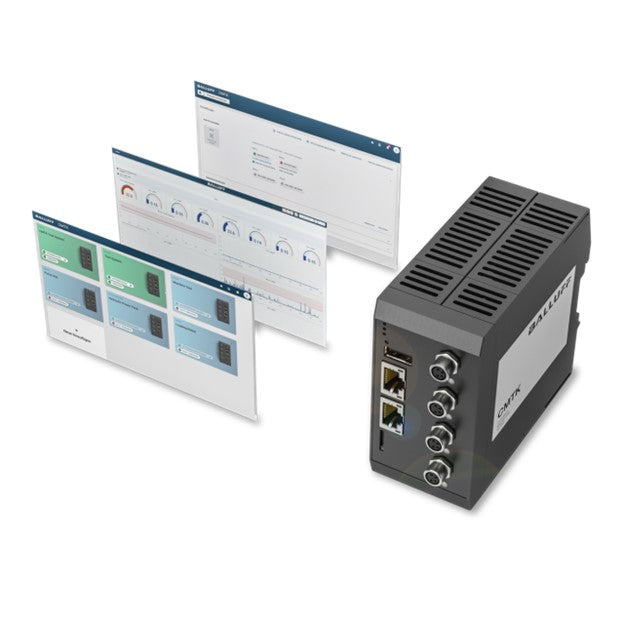

xThe BAV MA-NC-00025-01 is a condition monitoring toolkit for acquiring machine and process data via IO-Link. It provides four IO-Link ports (M8x1) alongside two RJ45 LAN ports, a Phoenix power connector and a USB 2.0 port, allowing connection of sensors and integration into a network infrastructure. The unit is DIN rail mounted, housed in a PA enclosure rated IP20, and operates from a 20-30 VDC supply (24 V nominal). It is suited to panel-based condition monitoring applications where IO-Link devices need to be connected and their data made accessible over a network.
Key specifications
- IP rating: IP20
- Operating voltage: 20 - 30 VDC
- Mounting: DIN rail
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CE WEEE UKCA cULus |
| Material: Housing / Grip | PA |
| Part Depth (mm) | 126mm |
| Part Width (mm) | 101mm |
| Part Height (mm) | 50mm |
| Connection Type | 2x LAN; RJ45 / Female / 8-pin / 4x IO-Link; M8x1 / Female / 4-pin / A-coded PWR: Phoenix MC1.5/3-STF-3.81 USB: USB 2.0 Standard-A |
| Operating Voltage | 20 - 30 VDC |
| Nominal Voltage | 24 V |
| Interface | IO-Link 1.1 |
| Mounting Type | DIN rail |
