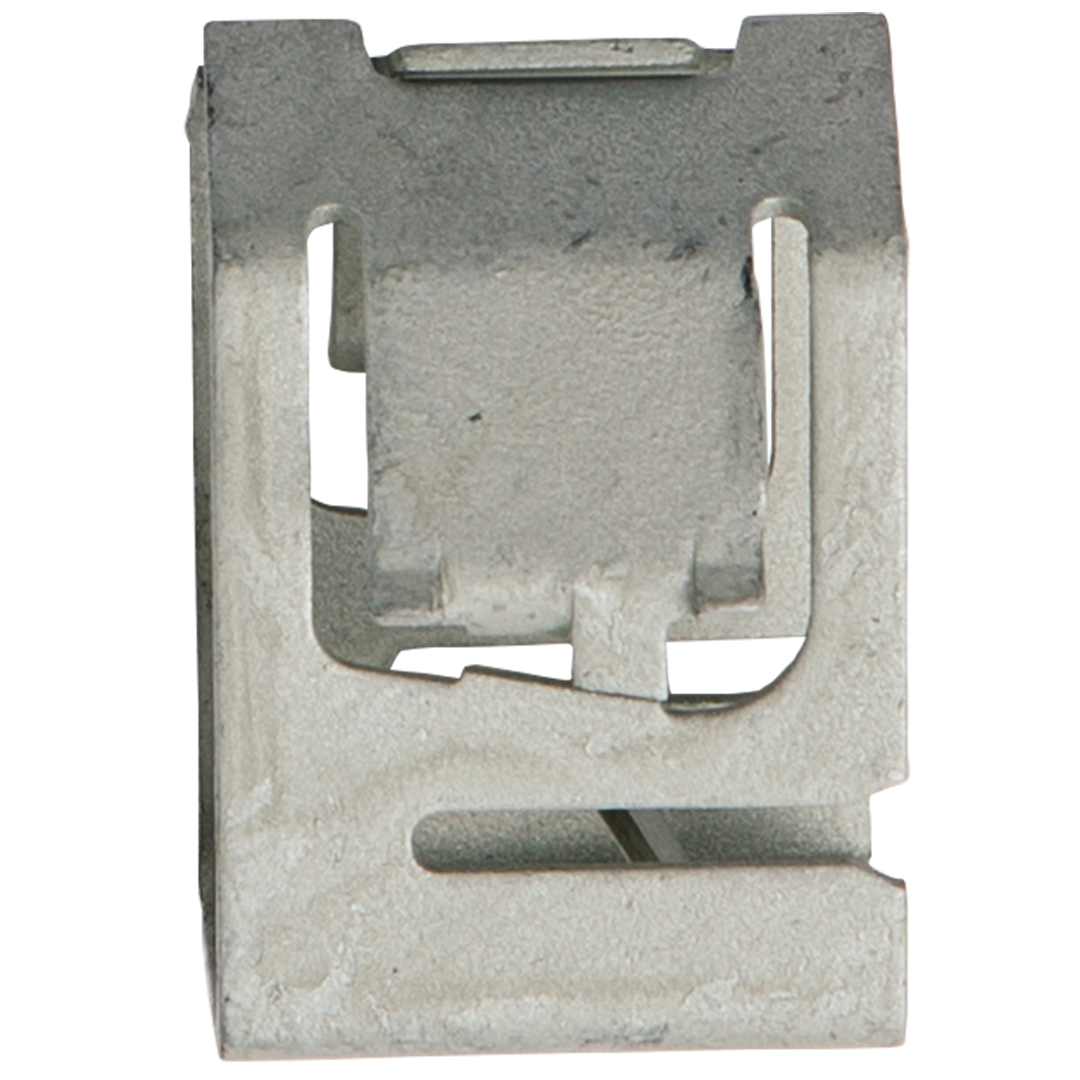

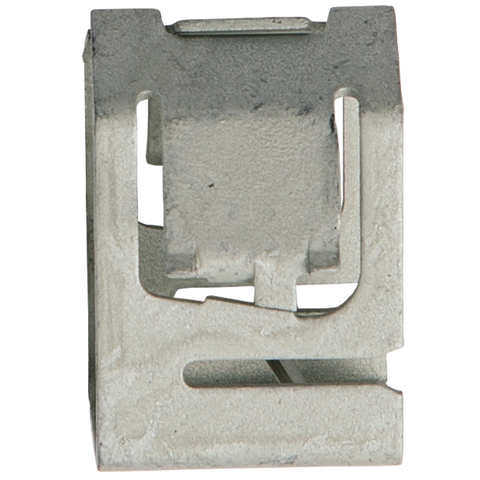

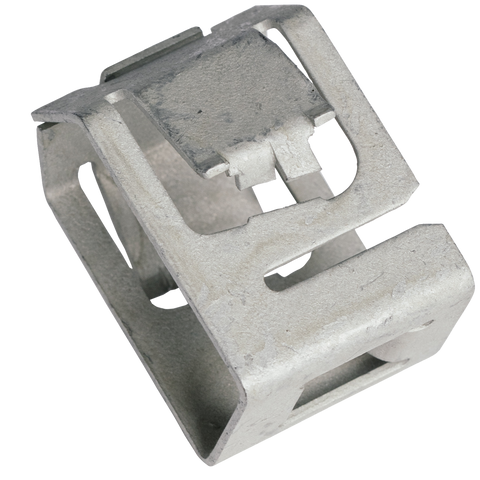

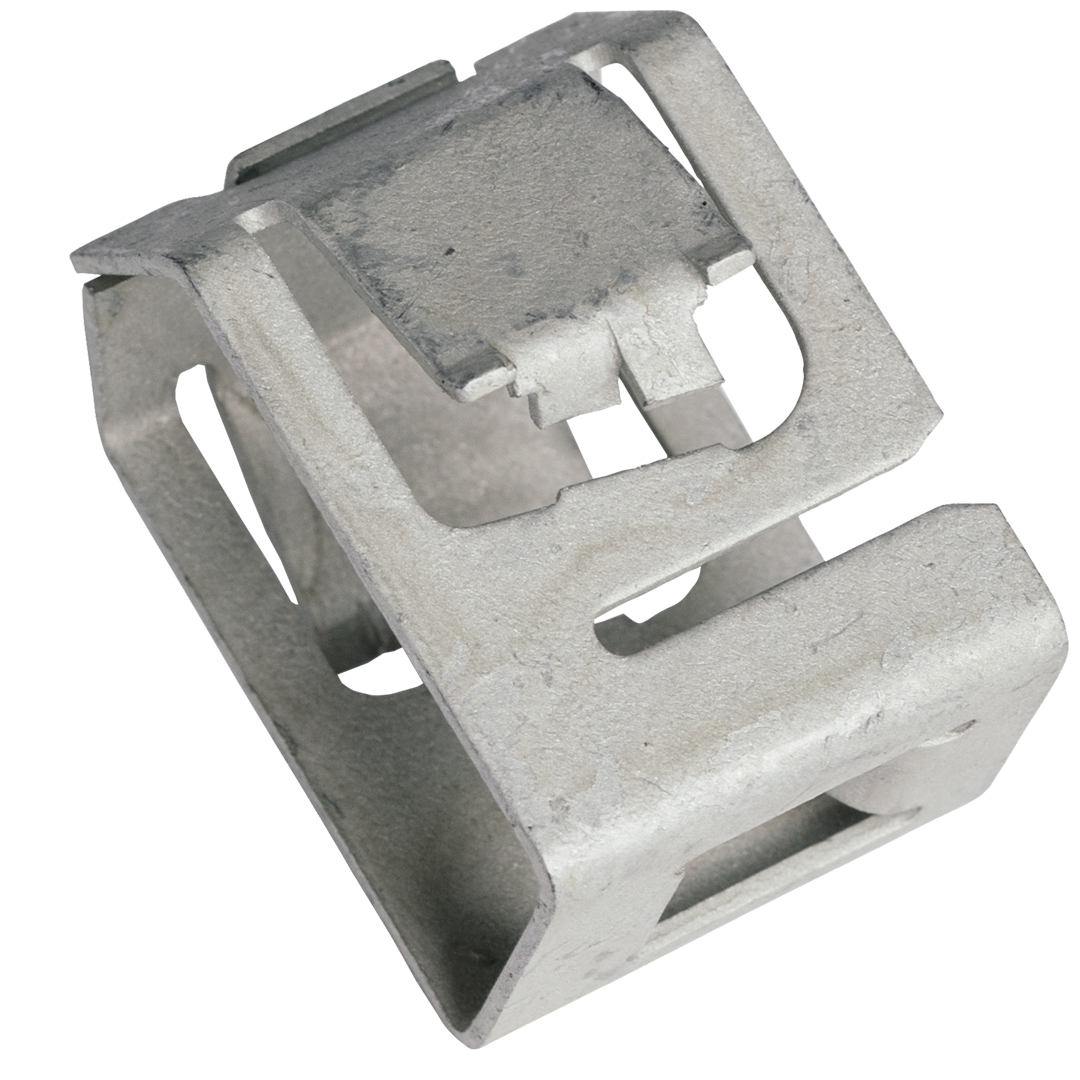

The ARaymond Powar snap S plus anti-theft clip seems to be a significant improvement over traditional fastening methods that require screws and tools, which can be time-consuming and labor-intensive. By eliminating the need for screws and tools, this fastening solution can help reduce costs and speed up assembly times for renewable energy projects.
Furthermore, the anti-theft clip feature provides an added layer of security for the project. This could be particularly important for renewable energy projects located in remote or unmonitored areas where theft or tampering could be a concern. Overall, the ARaymond Powar snap S plus anti-theft clip seems like a promising solution that could benefit the renewable energy industry.
| Material | Steel 1.1231 - DIN EN 10132:2000 |
| Surface Treatment | Inorganic zinc-rich basecoat with aluminium-rich organic topcoat |
| Dimensions (mm) | 37 x 30 x 25 |
| Weight (g) | 16.7 |
| Mechanical Resistance | Tested load +5400/-2400 Pa compliant with IEC 61215-10.16 |
| Corrosion Resistance | No red rust after 1000 hours salt spray acc. EN 60068-2-11:1999 IEC 6064391:20014 8.2.4.1 |
| Grounding Continuity | Internal tested after 1000 hours |
| PV Module Specifications | Module with frame thickness A between 1.5 and 2.2 mm, minimum lip length B of 16 mm, and minimum frame height C of 10 mm |
