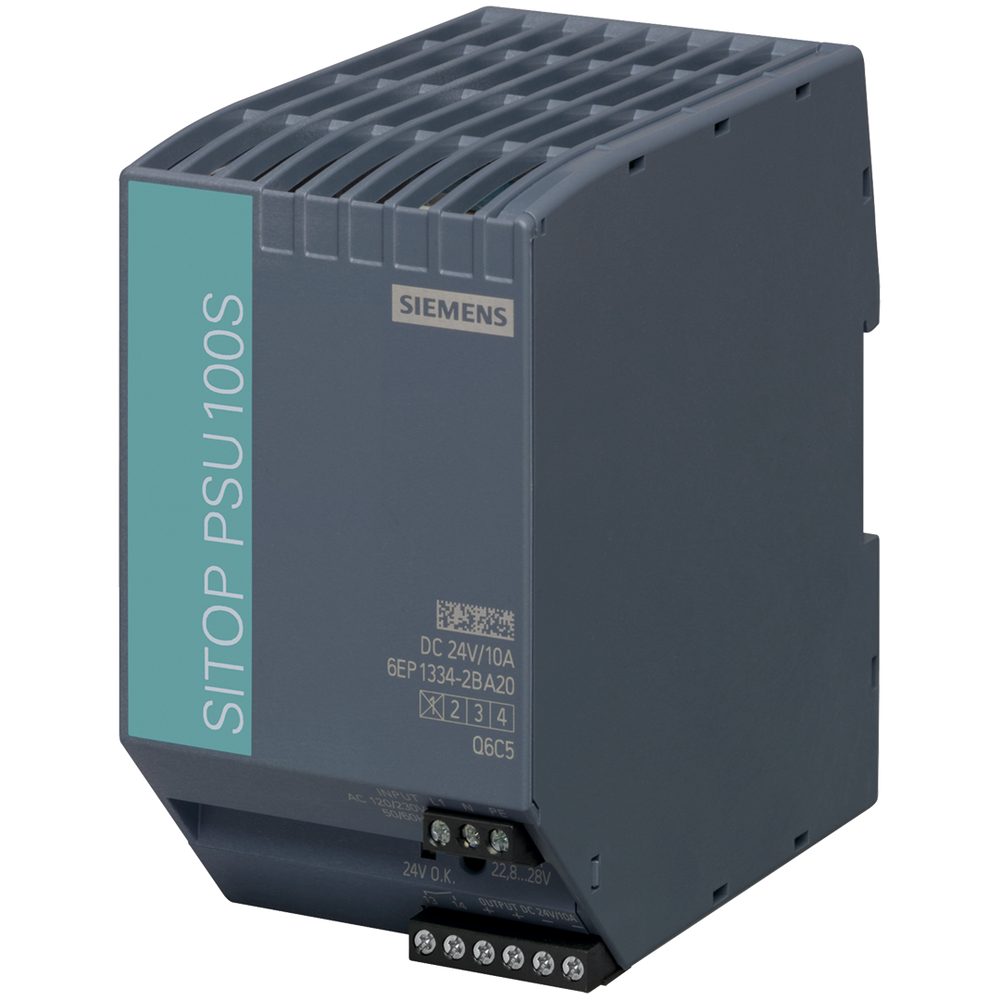

Siemens Sitop PSU100S Stabilized power supply, 24VDC, 10A

Product Overview

The SIMATIC SITOP PSU100S 10A Stabilized Power Supply delivers universal single-phase AC to DC power conversion with 120/230V AC input and regulated 24V DC/10A output for standard industrial automation applications. This active product provides powerful standard power supply capabilities for machine and plant construction, featuring excellent overload response with 150% power boost capability and permanent 120% overload capacity. Enhanced with compact design, high efficiency operation up to 91.5%, and compatibility with SITOP add-on modules for comprehensive power system solutions.

Key Features

• Single-Phase Input: 120/230V AC input for universal standard applications
• 10A Output Capacity: Regulated 24V DC output with 10A continuous current capability
• Excellent Overload Response: 150% power boost with permanent 120% overload capacity
• Compact Design: Space-efficient 70mm width with no lateral clearances required
• High Efficiency: Up to 91.5% efficiency minimizes energy consumption and heat generation
• Adjustable Output Voltage: Compensation capability for voltage drop applications
• Parallel Switching Option: Multiple units can be connected to increase performance
• Module Compatibility: Compatible with buffer, DC UPS, redundancy, and selectivity modules

Technical Specifications

• Input Voltage: 120/230V AC (170-264V AC range) | Output Voltage: 24V DC stabilized
• Output Current: 10A continuous | Power Output: 240W
• Frequency: 47-63 Hz | Weight: 0.700 kg
• Dimensions: 14.00 x 14.00 x 8.00 cm | Width: 70mm
• Mounting: DIN rail standard | Operating Temperature: -25°C to +70°C
• Protection Class: IP20 | Overload Capability: 150% power boost, 120% permanent overload
• Connection Type: Screw terminals | Efficiency: Up to 91.5%
• Case Material: Compact metal housing | Ambient Temperature: Up to 45°C for permanent overload

Applications & Integration

Primary Applications:

• Standard industrial machinery and plant construction power supply systems
• Manufacturing automation requiring reliable single-phase 24V DC power
• Control cabinet installations with moderate power consumption requirements
• Single-phase applications up to 10A current demand

System Compatibility:

• Compatible with SITOP buffer modules for power failure protection
• Integration with DC UPS modules for uninterrupted power supply
• Suitable for redundancy modules for increased system availability
• Compatible with selectivity modules for load circuit protection

Performance Benefits:

• Handles loads with high power consumption without problems due to 150% power boost
• Power reserves available for system expansions with 120% permanent overload capability
• High efficiency design reduces energy consumption and heat generation
• Compact design with no lateral clearances required saves control cabinet space

Quality & Compliance

• Status: PM300 Active Product | Origin: Austria
• EAN: 4025515153498 | UPC: 887621038649
• RoHS Compliant: Since 01.08.2006 | WEEE: Take-back obligation applies
• REACH: Contains lead compounds above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N
• Certifications: CE, cULus-Listed (UL 508, CSA C22.2 No. 107.1), cCSAus, ATEX, IECEx
• Product Class: A - Standard stock item with return capability

Package Contents

• 1 × SITOP PSU100S 10A Stabilized Power Supply, technical documentation, installation accessories
