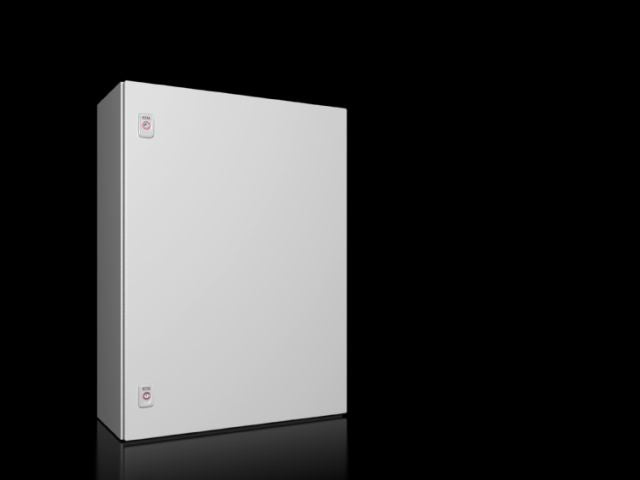

Rittal AX Compact enclosure, Sheet steel, 600x800x250mm

Product Overview

This wall-mount enclosure is engineered for industrial settings requiring high protection, flexible configuration, and rugged construction. The integrated 25 mm system grid with embossed enclosure locators lets you mount accessories and components without drilling, preserving the enclosure’s structural integrity. Built with carbon steel panels, a foamed-in polyurethane (PU) door seal, and dual cam locks, it’s ideal for controlling access while maintaining strong environmental and impact resistance.

Key Features:

·        Integrated System Grid: 25 mm grid pattern on roof, base and sides for fast, no-drill mounting of rails and accessories.

·        All-Round Door Seal: Foamed-in PU seal ensures tight protection against water, dust and other contaminants.

·        Rigid Steel Construction: Carbon steel body and door for strength and durability in tough industrial environments.

·        High Protection Ratings: Certified for IP 66, NEMA 1 / 3R / 4 / 12, and UL Type ratings, plus IK10 impact resistance.

·        Dual Cam Locks: Two 3 mm double-bit cam locks for secure closure.

·        Comprehensive Inclusion: Supplied with door, housing, mounting plate, gland plate in the base, and a punched door strip for flexible cable entry.

Technical Specifications:

·        Article Number: AX 1058.000

·        Dimensions (W × H × D): 600 mm × 800 mm × 250 mm

·        Material: Carbon steel for enclosure and door; mounting plate zinc-plated

·        Material Thickness – Door: 2 mm

·        Material Thickness – Enclosure Body: 1.5 mm

·        Material Thickness – Mounting Plate: 2.5 mm

·        Mounting Plate Dimensions (W × H): 545 mm × 775 mm

·        Number of Doors: 1

·        Number of Locks: 2 (cam version, 3 mm double-bit insert)

·        Gland Plate: Size 4, quantity 1 in the base

·        Net Weight: approx. 30.25 kg

Compliance & Certifications:

·        Protection Rating: IP 66 according to EN 60529

·        NEMA Ratings: 1, 3R, 4, 12

·        UL Type Ratings: Type 1, 3R, 4, 12

·        Impact Protection: IK10

·        Approvals: Bureau Veritas; DNV-GL; Lloyd’s Register of Shipping; UL + C-UL listed

Applications:

Well suited for control panels, switchgear housing, instrumentation setups, and any electrical or automation equipment installations in harsh or exposed conditions. Ideal for industries such as manufacturing, energy, utilities, oil & gas, and infrastructure where ingress protection, impact resistance, and modular system expansion are critical.
