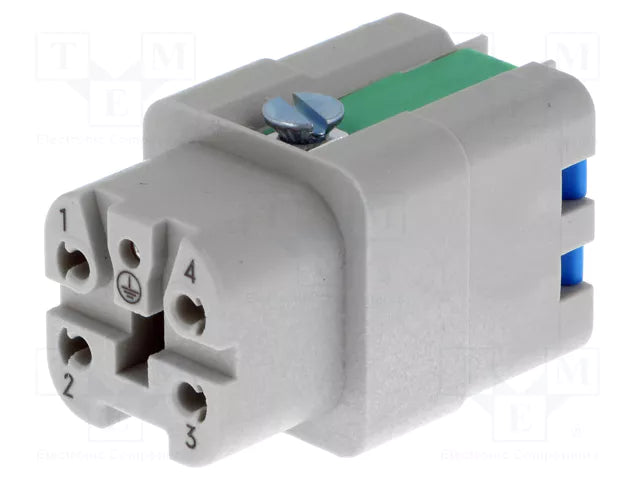

Harting Insert, Han-Quick lock, Female, size 3A, 0.5 - 2.5mm²

Product Overview

The Han 4A-F-QL (Article No.: 09 20 004 2733) is a female insert from HARTING's Han A® series featuring Han-Quick Lock® termination for tool-free wire connection. This 4-contact socket insert supports conductors from 0.5-2.5 mm² (20-14 AWG) with 10A current rating.

Key Features:

• Han A® series female insert with Han-Quick Lock® termination
• 4 contacts plus PE configuration (5 total contacts)
• Tool-free wire connection for 0.5-2.5 mm² (20-14 AWG) conductors
• Operating temperature: -40°C to +125°C
• UL94 V-0 flammability rating for enhanced safety

Technical Specifications:

• Article Number: 09 20 004 2733
• Series: Han A®, Size 4A
• Gender: Female (receptacle/socket)
• Termination Method: Han-Quick Lock®
• Contacts: 4 + PE (5 total)
• Current Rating: 10A
• Rated Voltage: 230/400V (600V UL)
• Conductor Cross-Section: 0.5 - 2.5 mm²
• Wire Size: 20-14 AWG
• Operating Temperature: -40°C to +125°C
• Flammability Rating: UL94 V-0

Compliance & Certifications:

• CSA: C22.2 No. 182.3 ECBT8.E235076
• UL Rated Voltage: 600V
• RoHS Compliant: Yes

Applications: Ideal for automation systems, industrial machinery, and power distribution where quick assembly and maintenance are required. The female socket configuration safely receives male counterparts while the Han-Quick Lock® system eliminates tools for wire installation/removal.

Benefits:

• Tool-free Quick-Lock® termination reduces assembly time
• Female socket configuration ensures safe connection with male counterparts
• 4+PE contacts provide power and protective earth connectivity
• Extended temperature range for extreme environments (-40°C to +125°C)
• Compatible with Han A® 4A series connector ecosystem
