GIC Digital Time Switch, Crono, 110V-220V AC, 16A relay - Rubicon Partner Portal
GIC Digital Time Switch, Crono, 110V-220V AC, 16A relay - Rubicon Partner Portal

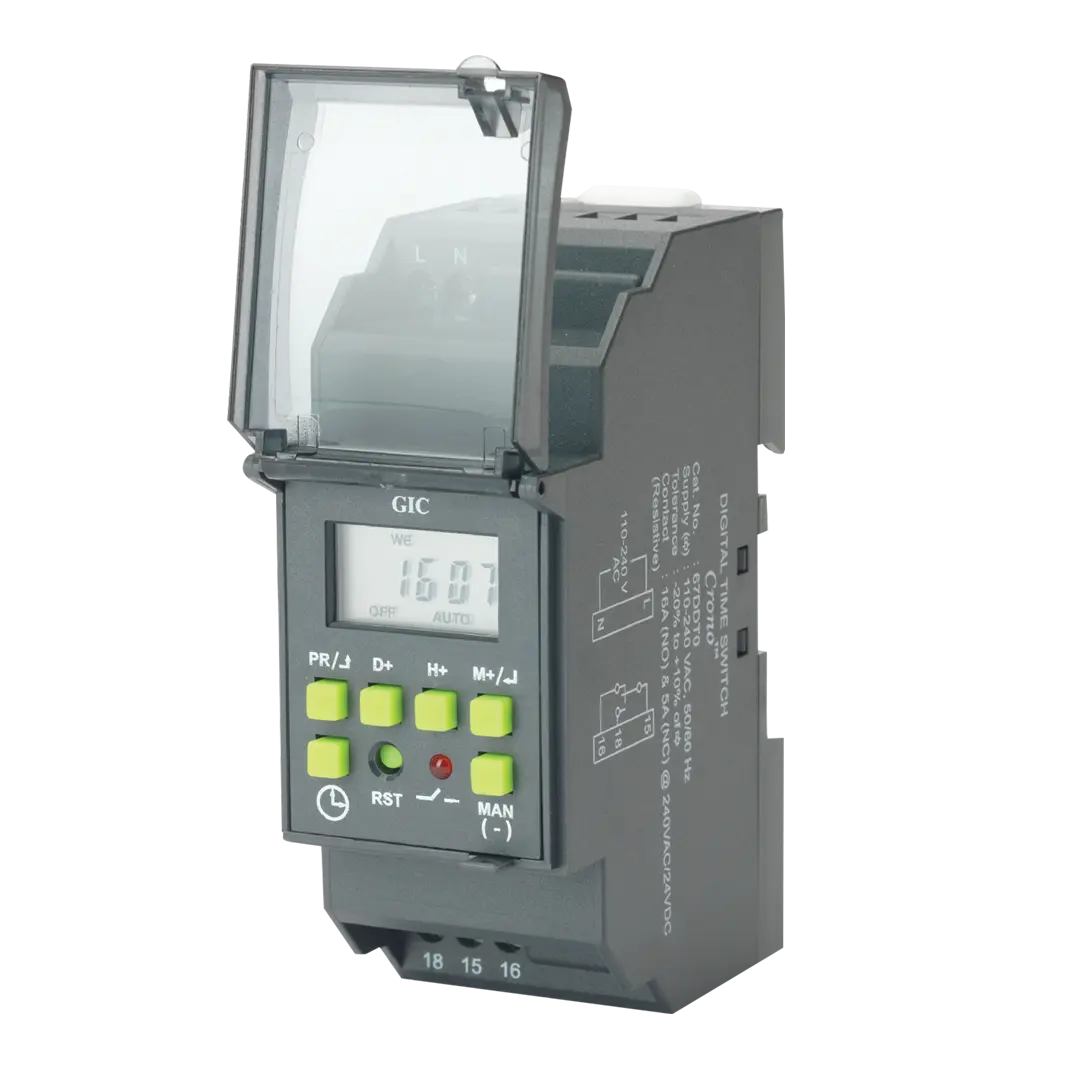

GIC Digital timeswitch, chrono, 110 - 220VAC, 16A

\nPrecise time programming for Daily/Weekly/Pulse switching\n25 ON/OFF programs\nWeekend Exclusion (FRI SAT or SAT SUN) and Weekly OFF programming\nLED Indication of Relay status\n12/24 h display formats\n6 Years Battery reserve\nSimple Reset & Manual override\nSettable DST & Keypad lock feature\n
Vendor: GIC
SKU: 67DDT0
Availability: In stock
Product type: Control Panel
Please hurry! Only 222 left in stock
Description
Description
x
    \n
  • Precise time programming for Daily/Weekly/Pulse switching
    • \n
  • 25 ON/OFF programs
    • \n
  • Weekend Exclusion (FRI SAT or SAT SUN) and Weekly OFF programming
    • \n
  • LED Indication of Relay status
    • \n
  • 12/24 h display formats
    • \n
  • 6 Years Battery reserve
    • \n
  • Simple Reset & Manual override
    • \n
  • Settable DST & Keypad lock feature
    • \n
Specifications
Specifications
x
IP Rating / DetailedIP20 / IP40
IP RatingIP20 / IP40
Compliance/CertificationsCE / cULus listed / RoHs
Temperature: Operating-10°C to 55°C
Part Depth (mm)65 mm
Part Width (mm)36 mm
Part Height (mm)90 mm
Weight (g)110 g
Max Frequency50/60 Hz
Rated Operating Voltage120/240 V, Rated Current (Ie): 3/1.5 A / 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.11 A
Supply Voltage110 - 240 VAC
Mounting TypeBase / DIN rail
Documents
Documents
x
Download Datasheet
